T-E2 Mini Laser Tube Cutting Machine
Automatic Support
Precision and Consistency
CNC Laser Pipe Cutting: Precision Cutting with Smart Recognition
Versatile Shape Identification
Versatile Shape Identification
Versatile Shape Identification
Tube Cutting Machine Body
Dato Laser Tube Cutter Video Presentation

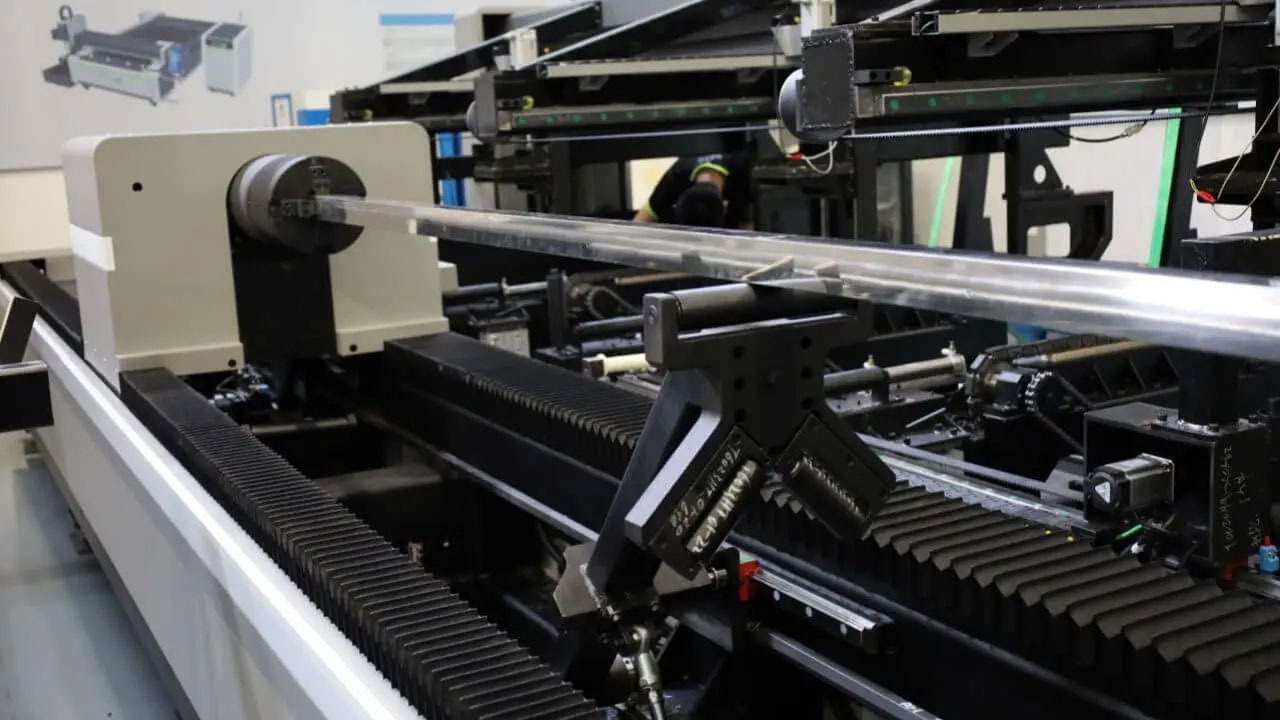

Precise Internal Transmission Structure
The Small Tube Laser Cutting Machine from Leapion utilizes advanced rack and pinion drive technology, ensuring a high level of precision in its internal transmission structure. This intricate internal design not only improves cutting accuracy but also enhances the operational stability of the equipment.

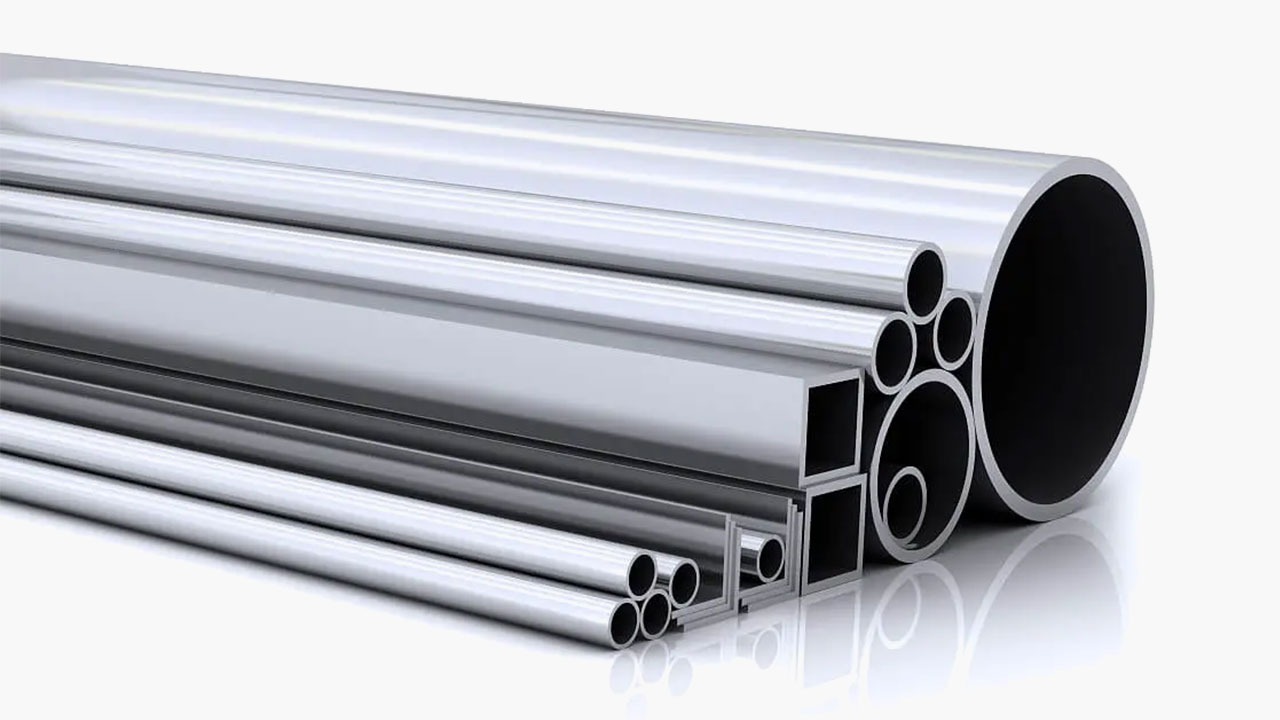

Specifically Designed for Cutting Small Pipes with Flexible Rotation Capabilities
Specifically designed for cutting small pipes, the machine offers extreme rotational flexibility. This allows the equipment to easily meet a variety of complex cutting demands, fulfilling your high standards whether you require fast or efficient cutting.

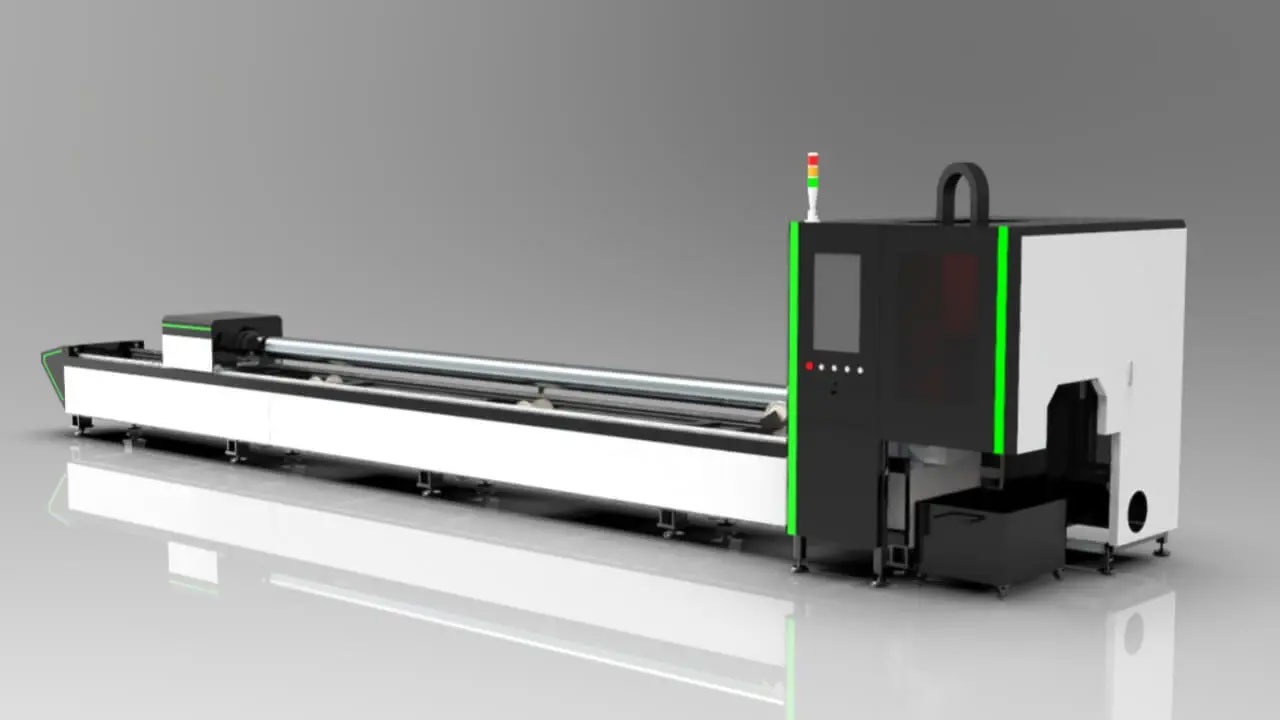

Smaller Overall Footprint, Cost-Effective and Easy to Install
With a smaller overall footprint, the Small Laser Tube Cutting Machine is easy to install even in limited spaces. This not only saves space but also reduces costs. Its simple installation process further adds to the cost-effectiveness of the equipment.
Tube Laser Machine Technical Parameters
Model
T-6011E2
T-6016E2
Min Diameter
Φ10mm □10mm
Φ20mm □20mm
Max Diameter
Φ110mm □110mm
Φ110mm □110mm
Laser Power Supply
1500w,2000w
Maximum Acceleration
1G
Positioning Accuracy
±0.03mm
Voltage
380V 3PH50/60HZ
Chuck Speed
80r/min
Upgrade
Air Conditioner, Smoke Puriher, Air Compressor, Voltage Regulator, Satety Light Curtain
Small Tube Fiber Laser Cutting Machine Key Features
High-Precision 3D Laser Cutting Head
Dato's machine employs a Raytools/WSX 3D laser cutting head with advanced optics and fine-tuned adjustments, ensuring unparalleled precision and quality in tube cutting applications.
Advanced Pneumatic Chuck
The pneumatic chuck in Leapion's Small Pipe Cutting Machine utilizes an internal rack and pinion drive for improved accuracy. It forms the centerpiece of the machine, ensuring a secure and precise grip on materials for optimized cutting performance.
Rack and Pinion Drive
The rack and pinion drive offers the agility needed for fast, high-quality cuts. Specifically designed for small pipe cutting, this core component dramatically improves both speed and efficiency in the cutting process.
High-Efficiency Fiber Laser Source
Dato's Small Pipe Cutting Machine is equipped with a standard MAX2000W laser for top-tier precision in tube cutting. We also offer laser options from long-term partners IPG and Raycus for added flexibility.
User-Friendly Control Panel
The intuitive control panel simplifies operation without sacrificing performance. With customizable settings, it offers unparalleled control for a wide range of cutting applications.
Eco-Friendly and Energy-Efficient
Dato's Small Pipe Cutting Machine features energy-efficient laser technology that minimizes power consumption, making it an eco-friendly choice without sacrificing performance.
Laser Cutting Machine Tube Showcase
Voices From User
Dato's laser cutting machine has been a game-changer for our business. The Automatic Clamping feature saves us so much time and the cuts are incredibly precise. Highly recommended!
Alex Johnson
We've been using Leapion's laser cutting machine for a few months now and the difference in quality is night and day. The machine's features, especially the Automatic Support Bracket, have made our long pipe projects a breeze.
Raj Patel
The Intelligent Shape Identification on Leapion's machine is unlike anything we've used before. It's made our workflow much more efficient and the results speak for themselves.
Maria González
Fiber Laser Cutting Machine FAQs
- Q: Can you arrange the shipment for me ?A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
- Q: Does the machine can be customized according to my requirements ?A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
- Q: How can I get the sample to check you quality ?A: If you want to welding sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free weld samples can be provided.
- Q: How to operate the machine ?A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
