Handheld Laser Marker for Large, Heavy and Fixed Objects

The Dato LM-H is a handheld fiber laser marking machine designed for large, heavy, fixed, or hard-to-move objects. Instead of moving the workpiece to a marking table, operators can bring the handheld marking head directly to the object.

It is suitable for permanent marking on machinery parts, metal structures, tools, pipes, vehicles, construction materials, nameplates, and industrial equipment. The LM-H can mark logos, QR codes, barcodes, serial numbers, text, and traceability codes on metals and selected plastics.

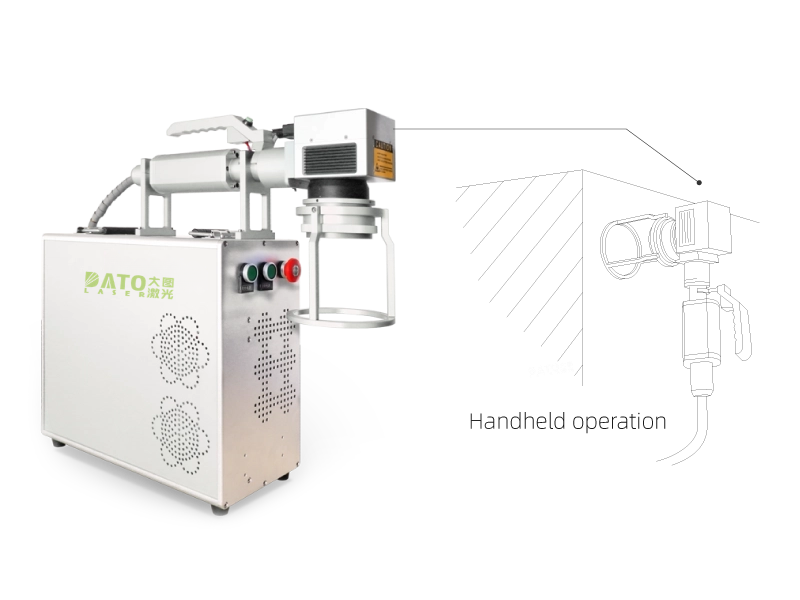

_LM-H Handheld Fiber Laser Marking Machine

Key Advantages

- Handheld marking head for large and fixed objects

- Suitable for heavy parts that cannot be moved to a worktable

- Mark logos, QR codes, barcodes, serial numbers, text, and nameplates

- 20W / 30W laser power options, or confirm 50W / 100W availability

- Marking area: 100 x 100 mm / 200 x 200 mm

- Marking speed up to 7000 mm/s, if confirmed

- Suitable for metals, plastics, ceramics, and selected materials after testing

Get a Quote

LM-H Handheld Fiber Laser Marking Machine Specifications

Item

Specification

Model

LM-H

Working Area

100 x 100 mm / 200 x 200 mm

Laser Power

20W / 30W, confirm whether 50W / 100W are available

Marking Speed

≤7000mm/s

Laser Wavelength

1064nm

Minimum Line Width

0.02mm

Minimum Character

0.15 x 0.15 mm

Working Voltage

220V / 50Hz or 110V / 60Hz

Marking Content

Text, logo, QR code, barcode, serial number, pattern, traceability code

Applicable Materials

| Metals, selected plastics, ceramics, and tested materials

Actual marking effect depends on material type, laser power, marking speed, focus distance, field lens, surface condition, and marking passes. Please send your material and marking content to Dato for sample testing.

Who Should Choose the LM-H?

The LM-H is suitable for users who need permanent marking on objects that are too large, heavy, or fixed to move to a standard marking table.

Buyer Type

Why LM-H Fits

Machinery manufacturers

Marks large machine parts, frames, plates, and equipment bodies

Construction material suppliers

Marks steel beams, panels, pipes, and structural parts

Vehicle and equipment users

Marks vehicle frames, equipment plates, and maintenance information

Metal fabrication workshops

Marks large metal parts, tools, molds, and custom workpieces

Pipe and tube users

Marks serial numbers, QR codes, and logos on fixed or long pipes

Maintenance teams

Marks installed equipment, assets, and traceability codes on site

LM-H Handheld vs LM-P Portable Laser Marking Machine

Item

LM-H Handheld

LM-P Portable

Best For

Large, heavy, fixed, or hard-to-move objects

Small and medium parts on a worktable

Operation

Move handheld marking head to the object

Place part under marking head

Typical Applications

Machinery, vehicles, pipes, structures, large parts

Tools, nameplates, jewelry, electronics, small parts

Flexibility

Better for on-site and large object marking

Better for stable workstation marking

LM-H Handheld Fiber Laser Marking Machine Video

Watch how the LM-H handheld fiber laser marking machine marks large, heavy, or fixed objects. The video can show marking head operation, focus adjustment, sample marking, and common marking applications.

Send your logo, QR code, serial number, or drawing file to Dato to request a marking sample video.

Request Sample Marking Video

Handheld Fiber Laser Marker

LM-HH hand-held laser metal marking machine has a unique design with small size. Especially suitable for marking large objects that cannot be moved. Fast processing speed, convenient movement, high cost performance of machine

Laser Source and Power Options

The LM-H can be configured with different fiber laser source options such as Raycus, MAX, or IPG, depending on customer requirements. Available laser power should be confirmed before ordering.

Higher laser power can improve marking speed and support deeper engraving on suitable materials, but actual depth depends on material, focus, speed, frequency, and marking passes.

Upgrades

Laser Safety Glasses

Laser safety glasses matched to the laser wavelength help protect operators from laser exposure. Operators must use proper laser safety protection and follow local safety requirements during marking.

Rotary System

The rotary fixture can help mark cylindrical objects such as pipes, shafts, rings, bottles, and round parts. It is suitable for circular text, logos, and serial number marking.

Adjustable 3D Worktable

The adjustable worktable can move up, down, left, and right to help operators position parts and adjust the marking focus more conveniently.

Handheld Laser Marking Materials and Samples

The LM-H can mark metals, selected plastics, ceramics, and other tested materials. Marking quality depends on material type, surface condition, laser power, focus distance, and marking parameters.

Common marking applications include: Stainless steel marking / Carbon steel marking / Aluminum marking / Brass marking / Tool marking / Pipe and tube marking / Machinery part marking / QR code and barcode marking / Nameplate marking / Serial number marking.

LM-H handheld laser marking stainless steel sample

LM-H Handheld Fiber Laser Marking Machine FAQs

What is the LM-H handheld fiber laser marking machine used for?

The LM-H is used for permanent marking on large, heavy, fixed, or hard-to-move objects. It can mark logos, QR codes, barcodes, serial numbers, text, patterns, and traceability codes.

What is the advantage of a handheld laser marking machine?

What materials can the LM-H mark?

What laser power options are available?

What marking area can I choose?

Can the LM-H mark QR codes and barcodes?

Can I request marking samples before ordering?

Can the LM-H mark cylindrical objects?

What safety protection is required?

Do you provide training and support?

Get a Handheld Laser Marking Solution

Tell us your object size, material, marking content, required marking area, marking depth, and whether the object can be moved. Dato will recommend the suitable LM-H laser power, field lens, handheld configuration, rotary fixture, and marking software setup.
