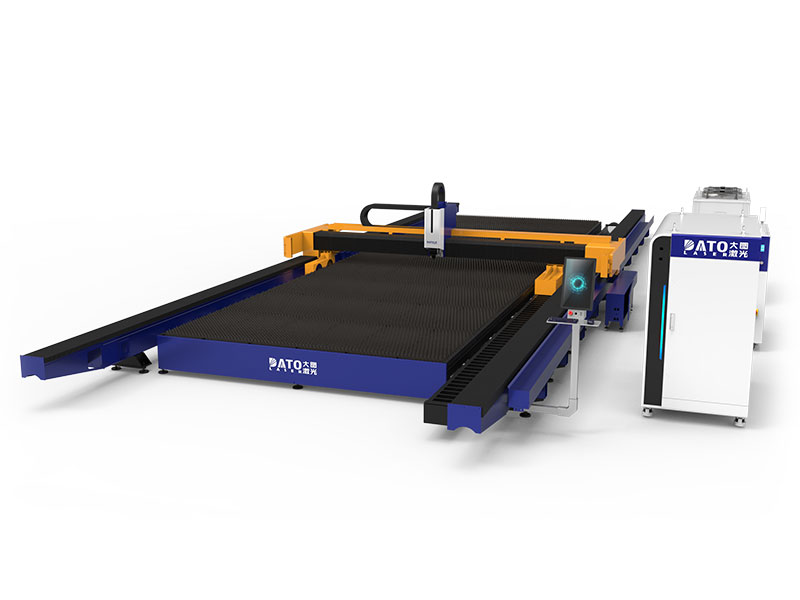

Large-Format High-Power Fiber Laser Cutter for Oversized Metal Sheets
The Dato F-GR is a large-format high-power fiber laser cutting machine designed for oversized metal sheets and heavy industrial fabrication. With 12000 x 2500 mm and 14000 x 3500 mm working areas, it is suitable for cutting large metal plates without frequent repositioning or secondary processing.
With 12000W, 20000W, 30000W, 40000W, and 50000W laser power options, the F-GR is built for construction machinery, automotive parts, shipbuilding components, agricultural machinery, rail transport parts, and large sheet metal fabrication.
Key Features
- Large working areas: 12000 x 2500 mm and 14000 x 3500 mm
- High-power laser options: 12000W / 20000W / 30000W / 40000W / 50000W
- Designed for oversized sheet metal and heavy industrial fabrication
- Reduces secondary positioning for large metal plates
- Suitable for carbon steel, stainless steel, aluminum, brass, and large-format metal sheets
- Optional smoke purifier, air compressor, voltage regulator, air conditioner, and safety light curtain
F-GR Large Size Fiber Laser Cutting Machine Specifications
Item
F-12025GR
F-14035GR
Working Area
12000 x 2500mm
14000 x 3500mm
X Y Z Axis Stroke
2550 x 12250 x 260mm
3550 x 14250 x 260mm
Laser Power
12000W / 20000W / 30000W / 40000W / 50000W
Maximum Acceleration
1G
Positioning Accuracy
±0.03mm
Power Supply
380V, 3 Phase, 50/60Hz
Cutting Materials
Carbon steel, stainless steel, aluminum, brass, galvanized sheet
Optional Upgrades
Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator, Safety Light Curtain
Who Should Choose the F-GR?
Buyer Type
Why F-GR Fits
Large sheet metal fabrication plants
Processes oversized metal sheets with fewer repositioning steps
Construction machinery manufacturers
Suitable for large structural plates and heavy equipment components
Shipbuilding and marine parts manufacturers
Handles large-format metal plates for marine and ship components
Agricultural machinery manufacturers
Cuts large panels, brackets, and structural parts
Rail transport suppliers
Suitable for large metal components and long plate processing
Heavy industrial equipment manufacturers
Supports high-power cutting for large and thick metal sheets
F-GR vs Standard Sheet Fiber Laser Cutting Machine
Typical Working Area
3000 x 1500 mm / 6000 x 1500 mm
12000 x 2500 mm / 14000 x 3500 mm
Best For
Standard sheet metal parts
Oversized metal sheets and large industrial parts
Material Handling
Standard sheets
Large plates and long sheets
Laser Power
Low to high power options
High-power configurations up to 50000W
Typical Users
General metal fabrication shops
Heavy fabrication, construction machinery, shipbuilding, rail, agricultural machinery
F-GR Large Size Fiber Laser Cutting Machine Advantages

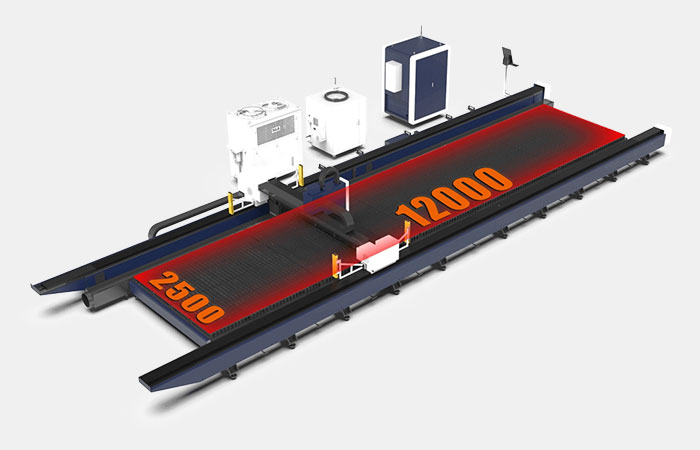

Extra-Large Cutting Area
The F-GR supports large working areas such as 12000 x 2500 mm and 14000 x 3500 mm. It is designed for oversized metal sheets, long plates, and large industrial parts that cannot be efficiently processed on standard-size machines.

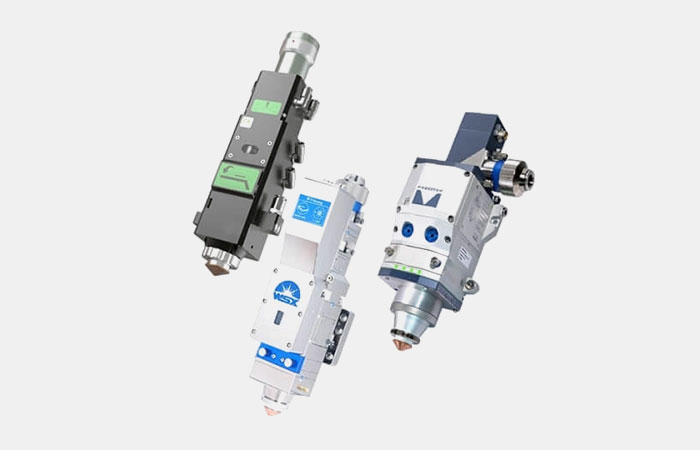

Flexible Configuration Options
The F-GR can be configured with different laser sources, cutting heads, control systems, smoke purifiers, air compressors, voltage regulators, and safety options. Dato can recommend a suitable configuration based on your plate size, material thickness, cutting quality, and production workload.
F-GR Large Size Laser Cutting Machine Features
Heavy-Duty Steel Structure Frame
The heavy-duty steel structure frame provides stable support for large-format sheet metal cutting. It is designed to reduce vibration, maintain cutting accuracy, and support long-term industrial operation with oversized plates.
Cast Aluminum Beam
The cast aluminum beam is lightweight and rigid, helping the machine achieve stable movement and reliable cutting accuracy across the large working area.
Fiber Laser Cutting Head
The fiber laser cutting head supports stable high-power cutting of carbon steel, stainless steel, aluminum, brass, galvanized sheet, and other metal materials. Auto-focus options can help reduce setup time across different plate thicknesses.
Wireless Handheld Control
The wireless handheld controller makes setup, positioning, testing, and daily adjustment easier, especially for large-format machine operation.
Intelligent CNC Operating System
The CNC operating system provides an intuitive interface for drawing import, cutting parameter setup, machine control, and production monitoring. The touchscreen interface helps operators manage large-format cutting tasks more efficiently.
Industrial Chiller Unit
The industrial chiller keeps the high-power laser source and optical components within a stable temperature range. This helps maintain cutting quality and extend the service life of key components.
Large-Format High-Power Cutting for Heavy Fabrication
The F-GR is designed for manufacturers that need to cut oversized metal sheets, long plates, and large industrial parts. Its large working area, high-power laser options, CNC control system, and stable machine structure make it suitable for heavy fabrication, construction machinery, shipbuilding, rail transport, and agricultural machinery production.
F-GR Large Size Fiber Laser Cutting Machine Video
Watch the F-GR large-size fiber laser cutting machine process oversized metal sheets with high power and stable cutting performance. The video demonstrates large-format cutting, machine movement, cutting speed, and edge quality.
Large-Format Cutting Materials and Sample Applications
The F-GR large-size fiber laser cutting machine can process oversized metal sheets and large industrial parts. Cutting performance depends on laser power, material thickness, gas type, cutting speed, and edge quality requirements.
Aluminum sheet cutting
Carbon steel plate cutting
Brass sheet cutting
Stainless steel plate cutting
Large structural plate cutting
Galvanized sheet cutting
Application Industries
Typical Customer Applications
A heavy fabrication plant can use the F-GR to cut oversized carbon steel and stainless steel plates with fewer repositioning steps. The large working area helps improve processing efficiency for large industrial parts.
Heavy Fabrication Plant
Construction machinery manufacturers can use the F-GR to cut large panels, brackets, structural plates, and heavy equipment components.
Construction Machinery Manufacturer
For shipbuilding and marine parts, the F-GR provides a larger cutting area for long plates and oversized sheet metal components.
Shipbuilding Parts Manufacturer
Agricultural machinery manufacturers can use the F-GR to process large sheet metal parts, frames, covers, and structural components.
Agricultural Machinery Manufacturer
F-GR Large Size Fiber Laser Cutting Machine FAQs
The F-GR is used for cutting oversized metal sheets, long plates, and large industrial parts. It is suitable for heavy fabrication, construction machinery, shipbuilding, rail transport, agricultural machinery, and large sheet metal processing.
Get a Large-Format Laser Cutting Solution
Tell us your plate size, material, maximum thickness, required laser power, workshop layout, and production workload. Dato will recommend the suitable F-GR model, laser power, auxiliary equipment, shipping plan, and installation solution.
