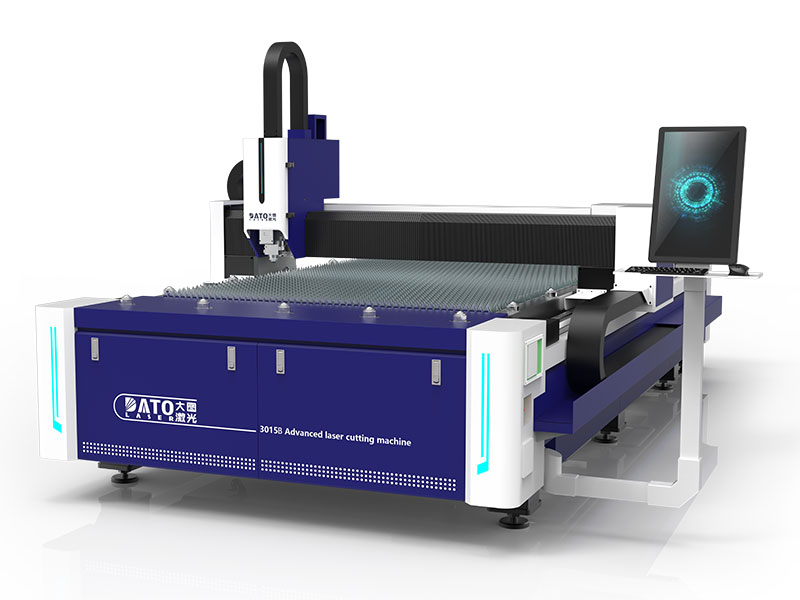

Open-Bed High-Power Sheet Metal Laser Cutting Machine
The Dato F-B Basic is an open-bed fiber laser cutting machine designed for medium and heavy-duty sheet metal fabrication. With laser power options from 2000W to 20000W and multiple working sizes, it is suitable for cutting carbon steel, stainless steel, aluminum, brass, galvanized sheet, and other metal materials.
Compared with entry-level economical models, the F-B Basic offers higher acceleration, stronger cutting capacity, and more flexible working table sizes for industrial production.
Key Attributes:
- 2000W to 20000W laser power options
- Open-bed design for easy sheet loading and unloading
- Multiple working areas: 3015, 6015, 4020, 6025
- Suitable for medium and thick sheet metal cutting
- 2G acceleration and ±0.03 mm positioning accuracy
- Optional air compressor, smoke purifier, voltage regulator, and air conditioner
Sheet Metal Laser Cutting Machine Technical Specifications
Item
F-3015B
F-6015B
F-4020B
F-6025B
Working Area
3000 x 1500mm
6000 x 1500mm
4000 x 2000mm
6000 x 2500mm
X Y Z Axis Stroke
1520 x 3100 x 100mm
1520 x 6050 x 100mm
2040 x 4050 x 100mm
2510 x 6100 x 260mm
Laser Power
2000w, 3000w, 6000w, 12000w, 20000w
Maximum Acceleration
2G
Positioning Accuracy
±0.03mm
Power Supply
380V 3PH 50/60HZ
Cutting Materials
Carbon steel, stainless steel, aluminum, brass, galvanized sheet
Cutting Ability
Carbon Steel: 1-80mm, Stainless Steel: 1-70mm, Aluminum: 1-60mm, Brass: 1-20mm
Optional Upgrades
Air conditioner, smoke purifier, air compressor, voltage regulator
| Laser Power | Best For | Typical Applications |
| 2000W-3000W | Thin to medium sheet metal cutting | Stainless steel, carbon steel, aluminum sheet, general sheet metal work |
| 6000W | Faster cutting and thicker material capability | Medium-duty fabrication, machinery parts, metal cabinets, hardware |
| 12000W | High-speed industrial sheet cutting | Heavy production, thicker carbon steel and stainless steel |
| 20000W | Heavy-duty cutting and high-volume production | Thick metal plate cutting, large fabrication plants, industrial metal processing |

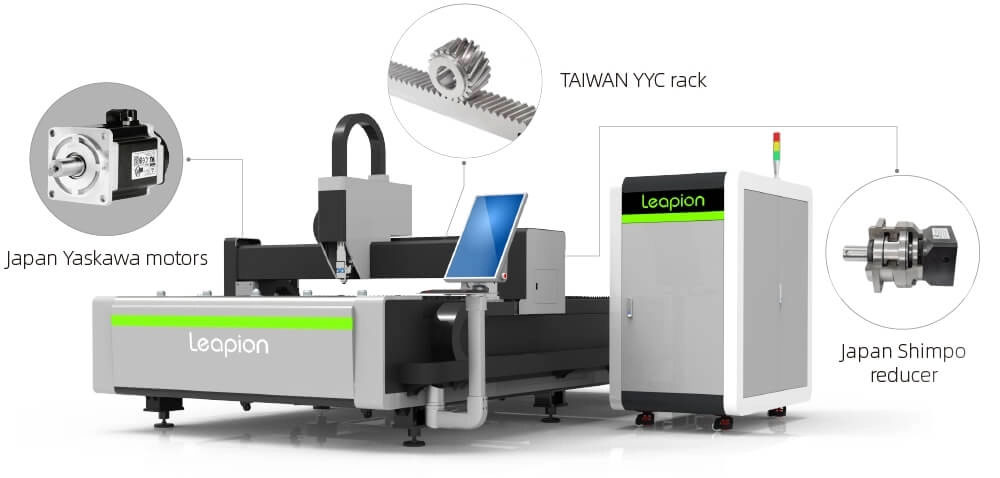

Transmission and Cutting Precision
The F-B Basic is equipped with Yaskawa servo motors, Shimpo reducers, and Taiwan YYC racks to support stable high-speed movement and reliable cutting accuracy. The machine is designed for precise sheet metal cutting with positioning accuracy up to ±0.03 mm.
For customers with higher precision requirements, Dato can recommend suitable configurations based on material type, sheet thickness, cutting speed, and tolerance needs.
F-B Basic Fiber Laser Cutting Machine Advantages

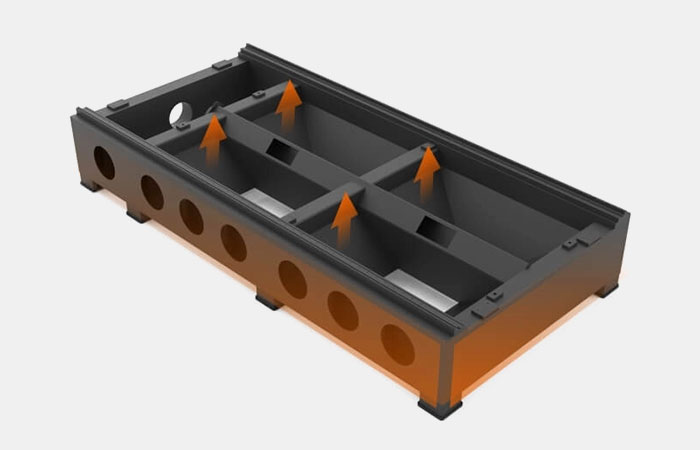

Hollow Steel Structure Frame
The hollow steel structure frame provides stable support for high-speed sheet metal cutting. Its welded and reinforced design helps reduce vibration, maintain cutting accuracy, and support long-term industrial use.

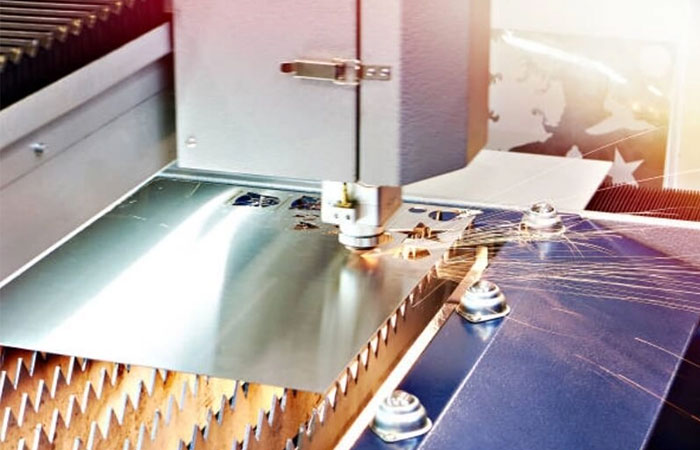

Auto-Focusing Laser Head
The auto-focusing cutting head adjusts focus automatically according to material thickness and cutting requirements. It helps improve cutting quality, reduce setup time, and protect the cutting head during daily operation.
Sheet Metal Laser Cutting Machine Features
Cast Aluminum Beam
The cast aluminum beam is lightweight, rigid, and suitable for high-speed movement. It helps improve acceleration, cutting stability, and long-term machine accuracy.
Fiber Laser Cutting Head
The fiber laser cutting head is designed for stable cutting of carbon steel, stainless steel, aluminum, brass, and other sheet metals. It supports high-speed cutting, stable focus control, and reliable performance for industrial production.
Wireless Handheld Control
The wireless handheld controller makes machine setup, positioning, testing, and daily adjustment easier. Operators can control key machine movements more conveniently during loading, calibration, and maintenance.
Intelligent Operating System
The CNC control system provides an intuitive interface for drawing import, cutting parameter setup, machine control, and production monitoring. The touchscreen interface helps operators reduce setup time and improve daily operation efficiency.
Electrical Cabinet
The electrical cabinet is designed for stable power distribution and safe machine operation. Optional air conditioning can be added for workshops with high temperature or demanding production environments.
Industrial Chiller Unit
The industrial chiller keeps the laser source and optical components within a stable temperature range. This helps maintain cutting quality and extend the service life of key components.
Fiber Laser Cutting Machine: Key Parameters
The Dato F-B Basic fiber laser cutting machine is designed for open-bed sheet metal cutting. It provides flexible power options, stable cutting performance, and multiple working table sizes for industrial metal fabrication.
Cutting Materials and Sample Applications
The F-B Basic fiber laser cutting machine can process a wide range of metal sheets, including carbon steel, stainless steel, aluminum, brass, and galvanized sheet. It is suitable for both thin sheet cutting and thicker metal processing depending on laser power.
Aluminum cutting
Carbon steel cutting
Brass cutting
Stainless steel cutting
Galvanized sheet cutting
Architectural Metalwork
Typical Customer Applications
Real Reviews, Real Trust!
We chose the F-B Basic because we needed a more powerful open-bed fiber laser cutter for daily sheet metal production. Dato helped us choose the right laser power and working size based on our material thickness.
Sheet Metal Fabrication Workshop
The machine runs steadily for carbon steel and stainless steel cutting. The open-bed structure makes loading and unloading large sheets convenient for our operators.
Machinery Parts Manufacturer
Dato recommended the F-3015B configuration for our workshop. The installation guidance and remote support helped our team start production quickly.
Metal Cabinet Manufacturer
We needed a higher-power machine for thicker metal sheets. The F-B Basic gave us a practical balance between cutting capability, cost, and operation efficiency.
Industrial Fabrication Plant
F-B Basic Fiber Laser Cutting Machine FAQs
Get a Recommended F-B Basic Configuration
Tell us your material, maximum thickness, working size, required laser power, country, and budget. Dato will recommend the suitable F-B Basic configuration, auxiliary equipment, and shipping solution for your workshop.
