Customer Profile

What the University Actually Needed

This Malaysian university engineering faculty came to DATO with a clear brief: they needed a real industrial cobot welding system — not a training simulator — that students could program, operate, and learn from in a lab environment.

Their specific requirements were:

• A system that mirrors what Malaysian manufacturers actually use on the production floor

• Safe enough for student operation without full industrial safety caging

• Easy enough to program that lecturers and students — not robotics specialists — could run it

• Compact enough to fit within an existing laboratory space

• Backed by documentation, certification, and after-sales support suitable for institutional procurement

These requirements shaped every decision in the configuration process.

The Product: Aubo i10 Cobot + DATO Automatic Laser Welding Head

Core System Components

Product Features That Matter for a University Application

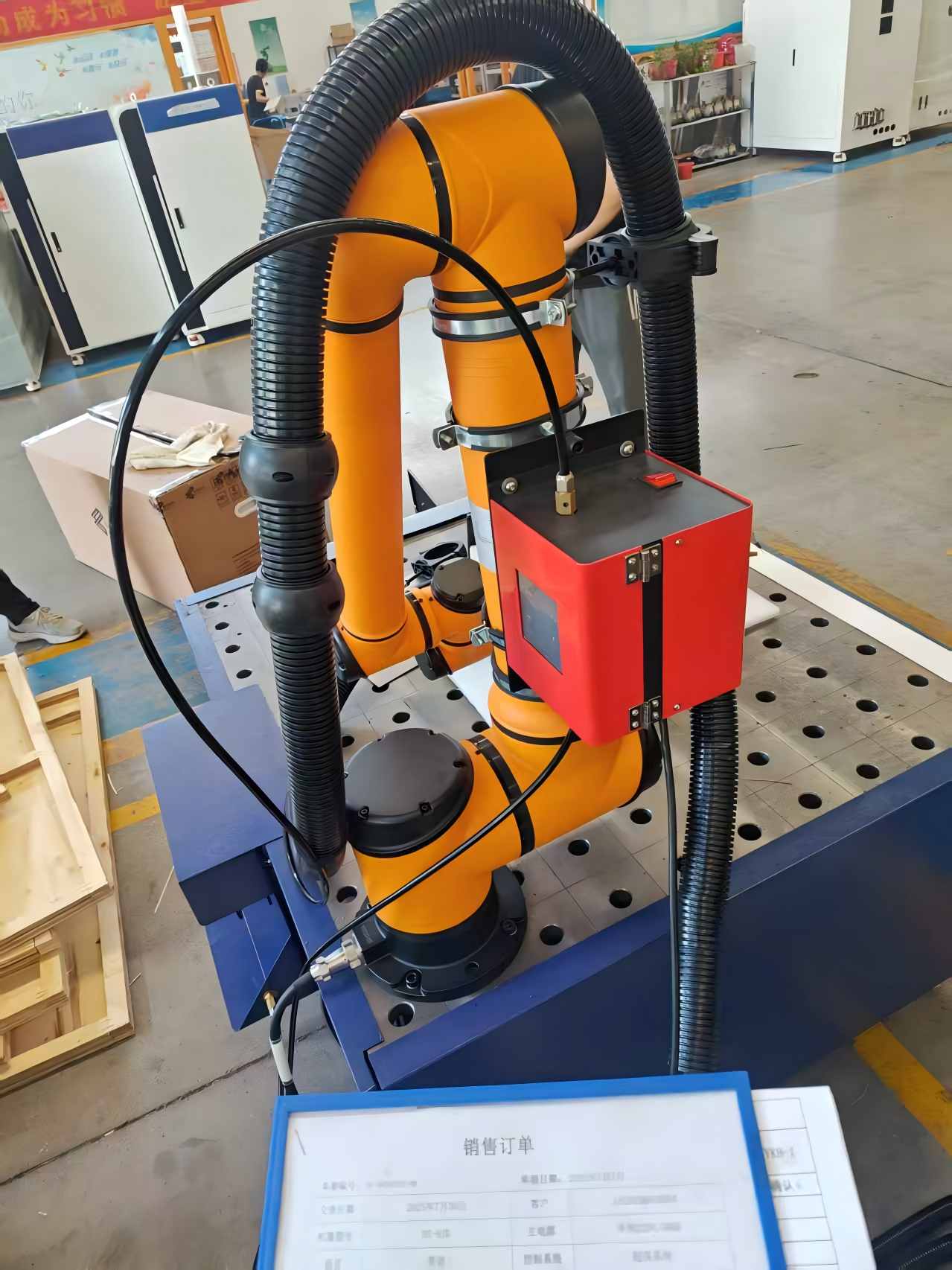

① Aubo i10: A Real Production Cobot, Not a Scaled-Down Demo Unit

The Aubo i10 is the same robot arm deployed in Malaysian factories — not a simplified educational version. This distinction matters enormously for a university:

• ±0.02mm positional repeatability — students experience genuine industrial precision, not a loosened-tolerance training approximation

• 6-axis full articulation — allows demonstration of complex weld paths: straight seams, curved paths, fillet joints, corner welds

• 10kg payload / 1350mm reach — sufficient for realistic workpiece sizes and welding torch configurations

• Collaborative safety (no full caging required) — the robot detects unexpected contact and halts automatically; groups of students can observe at close range safely

• CE & ISO certified — meets European and international safety standards; directly supports institutional procurement and accreditation documentation

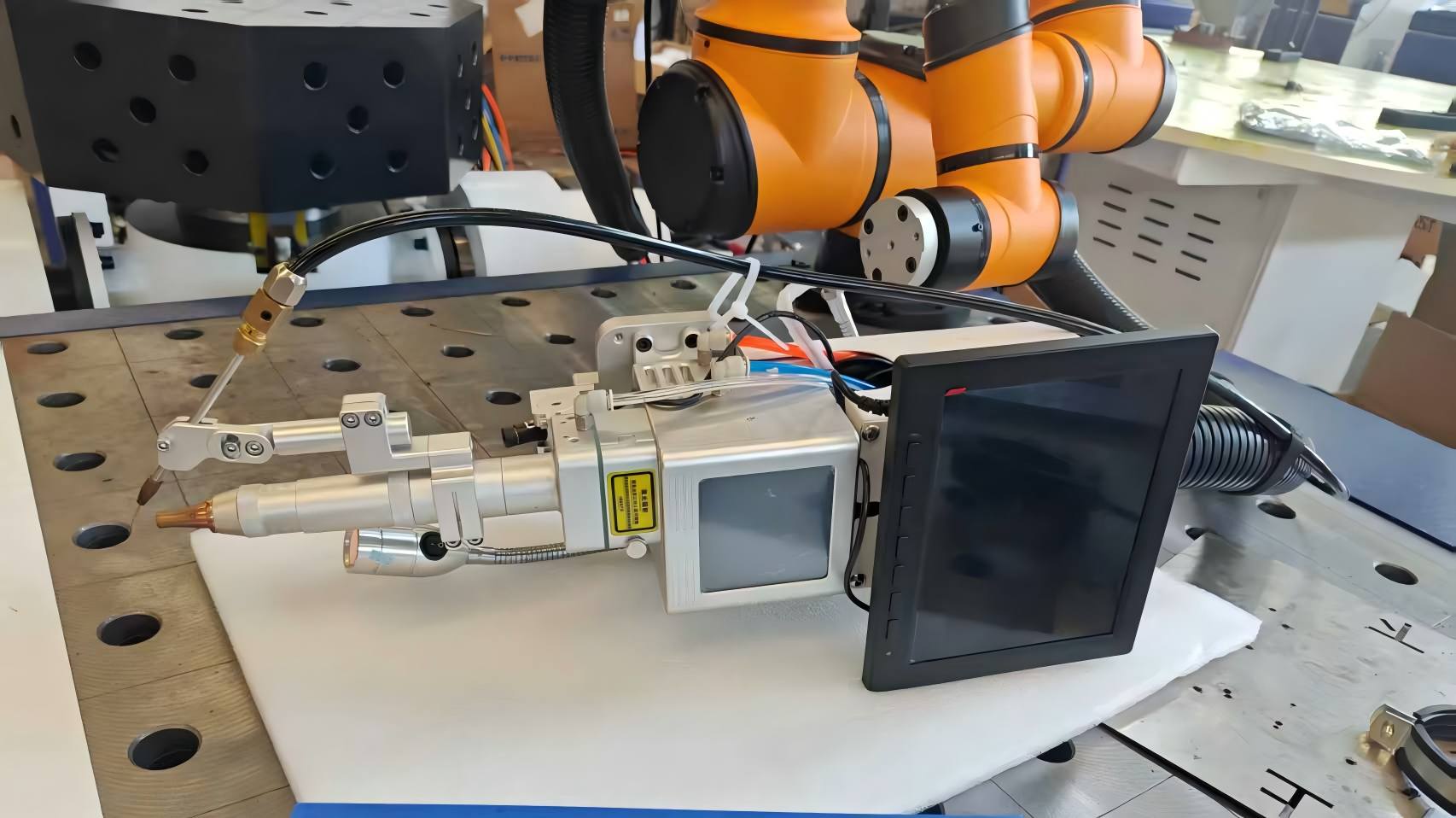

② DATO Automatic Laser Welding Head: The Key Differentiator

The automatic welding head is what separates this system from a basic cobot arm with a torch attached. Key features:

• Motorised beam oscillation — produces a controlled weld bead width (0–5mm adjustable) without manual weaving; students can visually observe how oscillation parameters affect bead profile

• Integrated wire feeding — wire is fed automatically at a programmable rate; eliminates the variable of manual filler addition and makes parameter relationships clear and repeatable

• Quick-release nozzle system — nozzle changes for different joint types take under two minutes; practical for multi-task lab sessions

• Real-time parameter feedback — laser power, wire feed speed, and travel speed are all displayed and logged; students can correlate input parameters with weld output directly

③ 1500W Fiber Laser Source: Visible Results on Teaching Materials

For a university demo application, laser power selection is critical. Too low and the system struggles with thicker demonstration samples; too high and thin sheet metal burns through before students can observe the process.

1500W was selected specifically for this application because:

• Welds cleanly through 1–4mm stainless steel and carbon steel — the most common teaching materials

• Produces a visually clear, bright weld seam that photographs and films well for lecture documentation

• Generates enough heat-affected zone contrast on cross-section samples for metallurgical analysis exercises

• Operates at parameters that allow slow-speed demonstration runs without losing arc stability — important when an instructor is explaining the process to a group in real time

Customisation: What DATO Configured Specifically for This Customer

This was not an off-the-shelf sale. DATO's engineering team worked through a detailed configuration process with the faculty's procurement and technical team:

Custom Configuration Details

① Workpiece Fixture DesignStandard production fixtures are optimised for one part type. For a university lab, the customer needed flexibility. DATO supplied a modular flat-bed welding table with adjustable clamping positions, allowing the same table to hold flat sheet samples, small tube sections, bracket assemblies, and custom student project pieces without fixture changes.

② Reduced-Speed Demo ModeAt full production speed, the welding process happens too fast for effective teaching. DATO configured a dedicated demonstration speed profile in the control system — allowing the robot to run at 20–40% of normal travel speed during teaching sessions, making the weld pool, wire feeding, and torch movement clearly visible to students watching from a safe distance.

③ Bilingual Control InterfaceThe control panel was configured with English and Bahasa Malaysia interface options — a practical detail that reduces the language barrier for students and ensures the system can be used effectively by the full range of faculty and student users.

④ Pre-Loaded Teaching ProgramsDATO pre-loaded five standard demonstration weld programs onto the system before shipment:

• Linear butt weld (flat position)

• Fillet weld (T-joint)

• Lap weld (sheet metal overlap)

• Curved path weld (demonstrating 6-axis motion)

• Multi-pass weld (demonstrating parameter layering)

These programs allow lecturers to run structured demonstrations from day one, without needing to program the system from scratch before their first class.

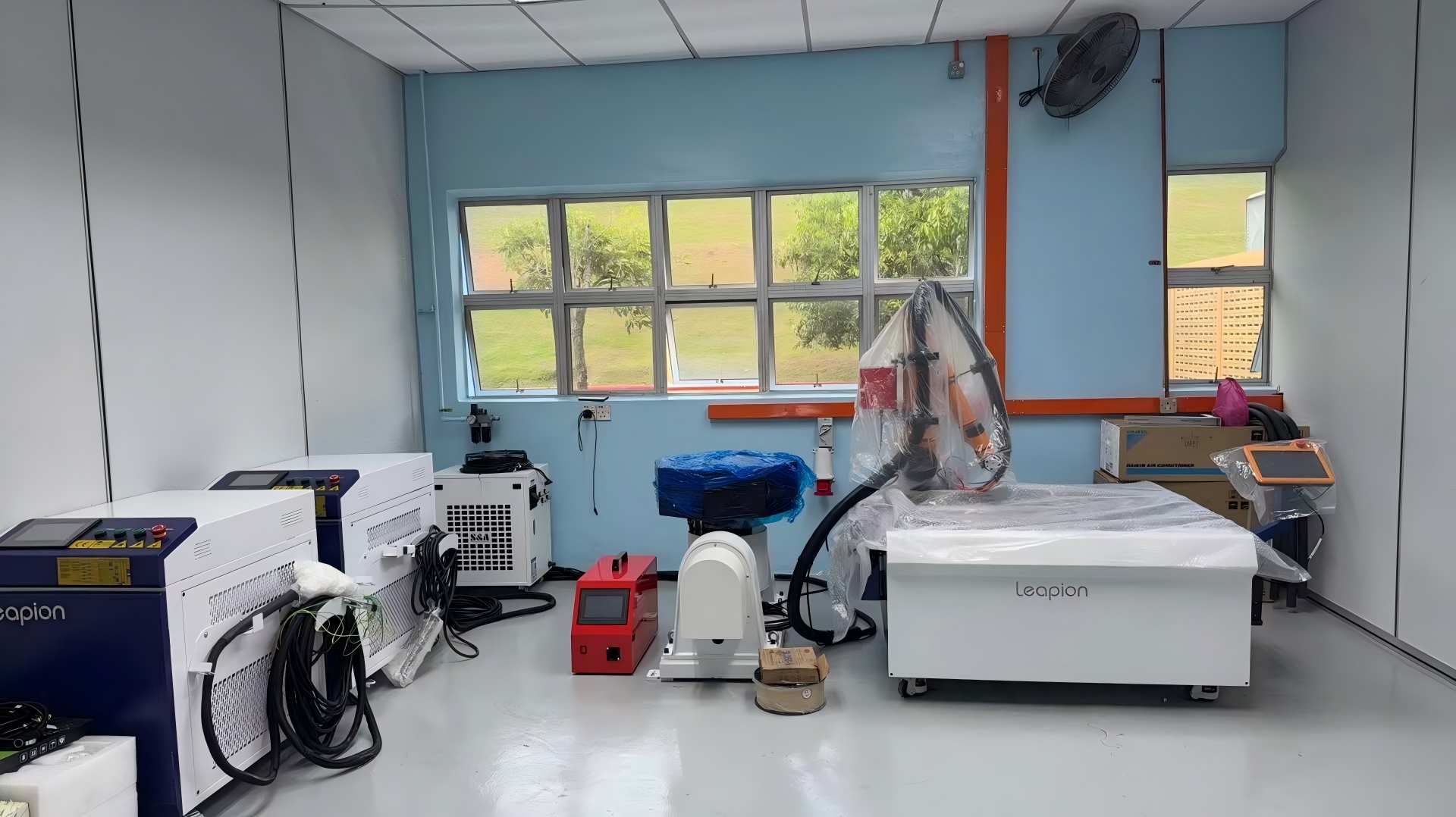

⑤ Compact Footprint LayoutThe university's lab space had specific dimensional constraints. DATO's team reviewed the floor plan and configured the system with a side-mounted laser source cabinet rather than the standard rear-mounted layout, reducing the overall footprint by approximately 30% and allowing the system to fit within the allocated lab bay.

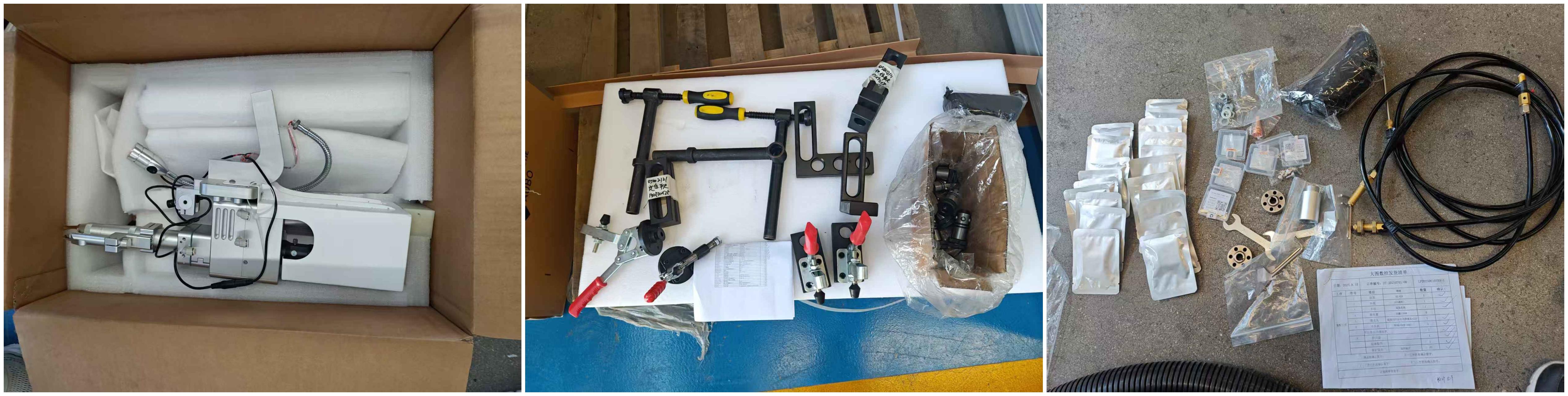

Packaging & Delivery: Protecting the Investment

University procurement involves long shipping distances, institutional receiving procedures, and limited on-site technical staff for unpacking and installation. DATO addressed this directly:

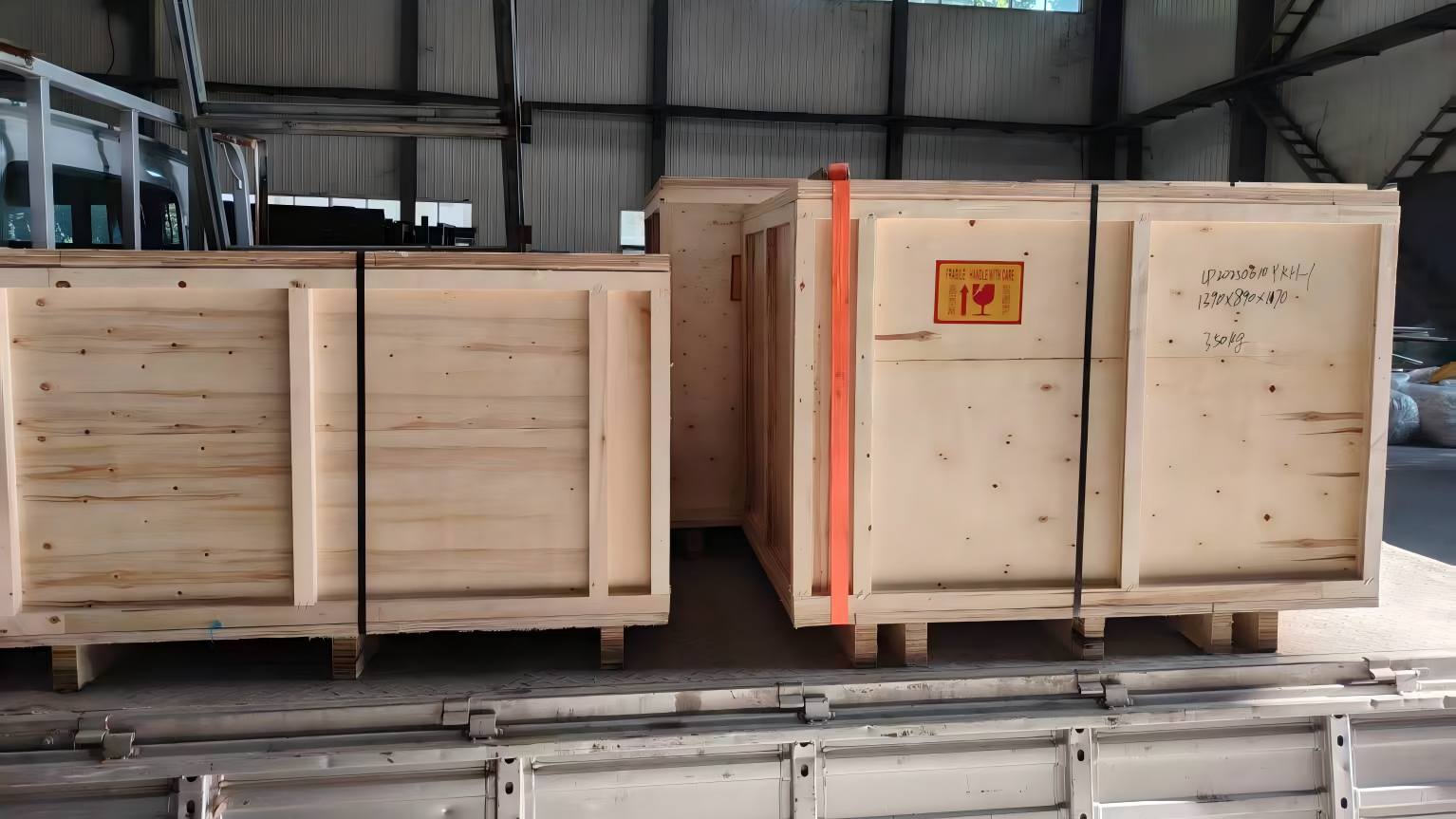

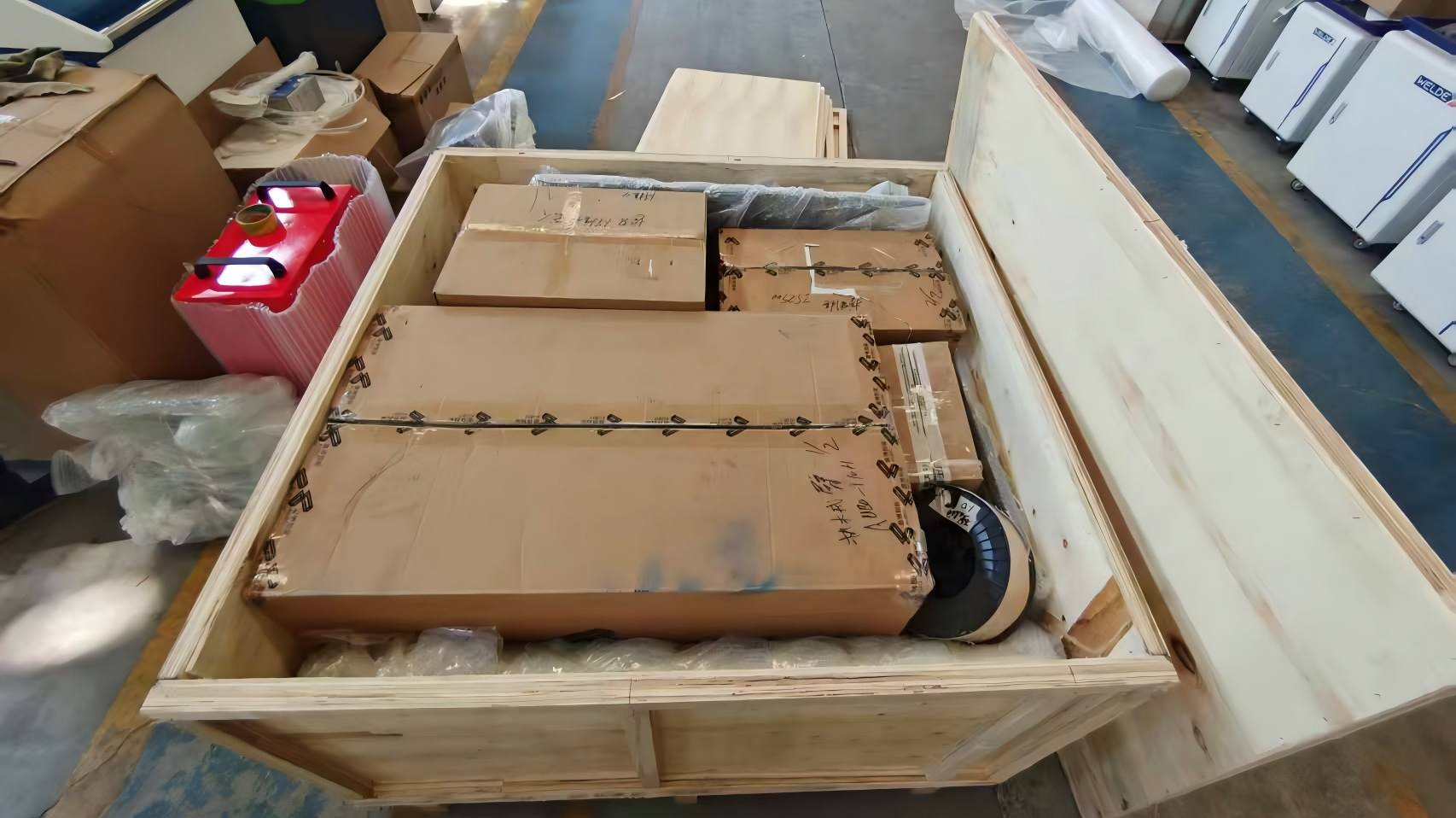

• Export-grade wooden crating with internal foam-formed supports for the robot arm, welding head, and laser source — each component individually protected against vibration and moisture during sea freight

• Component-level labelling on every package — each crate clearly marked with contents, weight, handling instructions, and installation sequence number

• Pre-shipment inspection report provided before dispatch — including robot axis movement test results, laser output power verification, and welding head calibration data

• Packing list with photo documentation — the university's procurement office received a full photographic record of the packed system for customs clearance and institutional asset registration

Quality Inspection: What Was Verified Before Shipment

Every system DATO ships goes through a structured pre-shipment quality check. For this university order, the inspection covered:

The weld samples produced during QC inspection were shipped with the system — giving the faculty a physical reference standard for what the system should produce, and a teaching aid for the first day of use.

Certifications: Meeting Institutional Procurement Requirements

University procurement processes typically require formal documentation before a purchase order can be approved. DATO provided the full certification package required:

• CE Certificate — confirms the system meets European machinery safety directives; accepted by Malaysian institutional procurement as an internationally recognised quality benchmark

• ISO 9001:2015 — DATO's quality management system certification, covering design, manufacturing, and after-sales processes

• Aubo i10 Robot Safety Certification — UL, CE, and ISO robot safety certifications for the collaborative robot arm

• Laser Safety Classification — laser source classified and documented per IEC 60825-1; required for university laboratory safety compliance

• Electrical Safety Test Report — full electrical safety test report for the integrated system

These documents were prepared and provided as a complete procurement package — reducing the administrative burden on the faculty's purchasing department and accelerating the approval process.

Service Process: From First Enquiry to First Class

Stage 1 — Technical Consultation (Week 1–2)

The faculty's technical team submitted their lab dimensions, curriculum requirements, and budget parameters. DATO's application engineer reviewed the brief and proposed the Aubo i10 + 1500W automatic welding head configuration, with a detailed explanation of why each component was selected for an education application specifically — not a generic product brochure.

Stage 2 — Custom Configuration Confirmation (Week 3)

DATO presented the customisation options: demo speed mode, bilingual interface, pre-loaded programs, compact footprint layout, and modular fixture table. The faculty reviewed and confirmed the configuration. A formal quotation with itemised pricing was issued.

Stage 3 — Production & Quality Inspection (Week 4–7)

The system was assembled, integrated, and tested at DATO's facility. The pre-shipment inspection was completed and the full QC report, weld samples, and certification package were compiled.

Stage 4 — Export Packaging & Shipment (Week 8)

The system was packed in export-grade wooden crates, photographed, and dispatched via sea freight to Malaysia. The university received tracking information, a packing list with photos, and the full documentation package by email.

Stage 5 — Remote Installation Support (Week 10–11)

Upon arrival, DATO's technical team provided remote installation guidance via video call — walking the university's lab technician through unpacking, positioning, electrical connection, and system startup step by step. The session was recorded and provided to the faculty for future reference.

Stage 6 — Online Operation Training (Week 11–12)

A dedicated online training session was conducted for the faculty's lecturers and lab technicians, covering:

• System startup and shutdown procedures

• Teach pendant navigation and basic programming

• Running and modifying the pre-loaded demo programs

• Welding parameter adjustment for different materials and thicknesses

• Routine maintenance: nozzle cleaning, wire spool replacement, lens inspection

Stage 7 — Ongoing After-Sales Support

DATO provides continued technical support via WhatsApp and email. Response time for technical queries is within 24 hours. Spare parts — nozzles, protective lenses, wire spools, consumables — are available for direct order and shipped within standard lead times.

Pricing: What Universities Should Know

University procurement operates differently from commercial manufacturing — budget cycles, committee approvals, and value-for-money justification are all part of the process. DATO's approach to pricing for education customers reflects this:

• Itemised quotation — every component is priced separately so the faculty can clearly see what they are paying for and justify each line item to procurement committees

• Education configuration pricing — the demo speed mode, pre-loaded programs, bilingual interface, and modular fixture table are included in the system price, not charged as extras

• Certification package included — CE, ISO, and laser safety documentation are provided at no additional cost; these are not optional add-ons

• Transparent after-sales costs — consumable part numbers, prices, and lead times are provided upfront so the faculty can budget for ongoing operating costs accurately

• No hidden integration fees — the system is supplied as a fully integrated, tested unit; the university does not need to hire a third-party integrator to make it operational

Customer Feedback

"What stood out about DATO was the level of detail in the configuration process. They didn't just send us a product catalogue — they asked about our lab space, our curriculum, our students' experience level, and then proposed a system that actually matched what we needed. The pre-loaded demo programs meant we could run our first student session within a week of installation. The QC weld samples they shipped with the system are now on display in our lab."
— Senior Lecturer, Faculty of Mechanical & Manufacturing Engineering, Malaysia

Why Malaysian Universities Choose DATO

System Specifications

DATO Aubo i10 Cobot Welding System — Education Configuration
Robot: Aubo i10 | 6-Axis | 10kg Payload | 1350mm Reach | ±0.02mm Repeatability
Welding Head: DATO HJR-A3 Automatic Laser Welding Head | 0–5mm oscillation width
Laser Power: 1500W Fiber Laser (Raycus)
Wire Diameter: 0.8 / 1.0 / 1.2 / 1.6mm | Max Feed Speed: 100mm/s
Materials: Stainless steel, carbon steel, galvanized sheet, aluminum alloy
Interface: English / Bahasa Malaysia (bilingual)
Certifications: CE, ISO 9001, UL, IEC 60825-1 Laser Safety
Cooling: Water cooling
Footprint: Compact side-mounted layout (customised to lab dimensions)
