Power selection is one of the most common — and most consequential — mistakes manufacturers make when purchasing a laser welding machine. Choose too low, and you can't weld your thickest materials. Choose too high, and you've overspent on capability you'll never use. This guide gives you the exact framework to get it right the first time.

Whether you're evaluating the DATO DT-HJR Automatic Laser Welding Machine or any other fiber laser welding system, the power level you select will determine what materials you can weld, at what thickness, at what speed, and with what quality outcome. Getting this decision right is fundamental to the performance and value of your investment.

In this guide, we break down each power level — 1000W, 1500W, 2000W, and 3000W — with real welding capability data, industry application examples, and a practical decision framework you can apply directly to your own production requirements.

Why Power Selection Matters More Than Most Buyers Realize

Many first-time laser welding machine buyers focus primarily on brand, price, and features — and treat power level as an afterthought. This is a mistake that leads to one of two costly outcomes:

The Under-Power Problem

You select a lower power level to save money, only to discover that your thickest materials — the ones that represent your most profitable jobs — cannot be welded at acceptable quality or speed. You end up either turning away high-value work, or investing in a second machine sooner than planned.

The Over-Power Problem

You select the highest available power "just to be safe," paying a significant premium for capability that your actual production requirements never demand. The extra investment delivers no return — and in some cases, excessive power on thin materials can actually create quality problems through over-penetration and heat distortion.

The right power level is the one that matches your actual material range and production requirements — with a sensible margin for future growth, but without paying for capability you genuinely don't need.

Understanding this balance is exactly what this guide is designed to help you achieve.

The Fundamental Principle: How Laser Power Relates to Welding Capability

Before comparing specific power levels, it's important to understand the underlying relationship between laser power and welding performance:

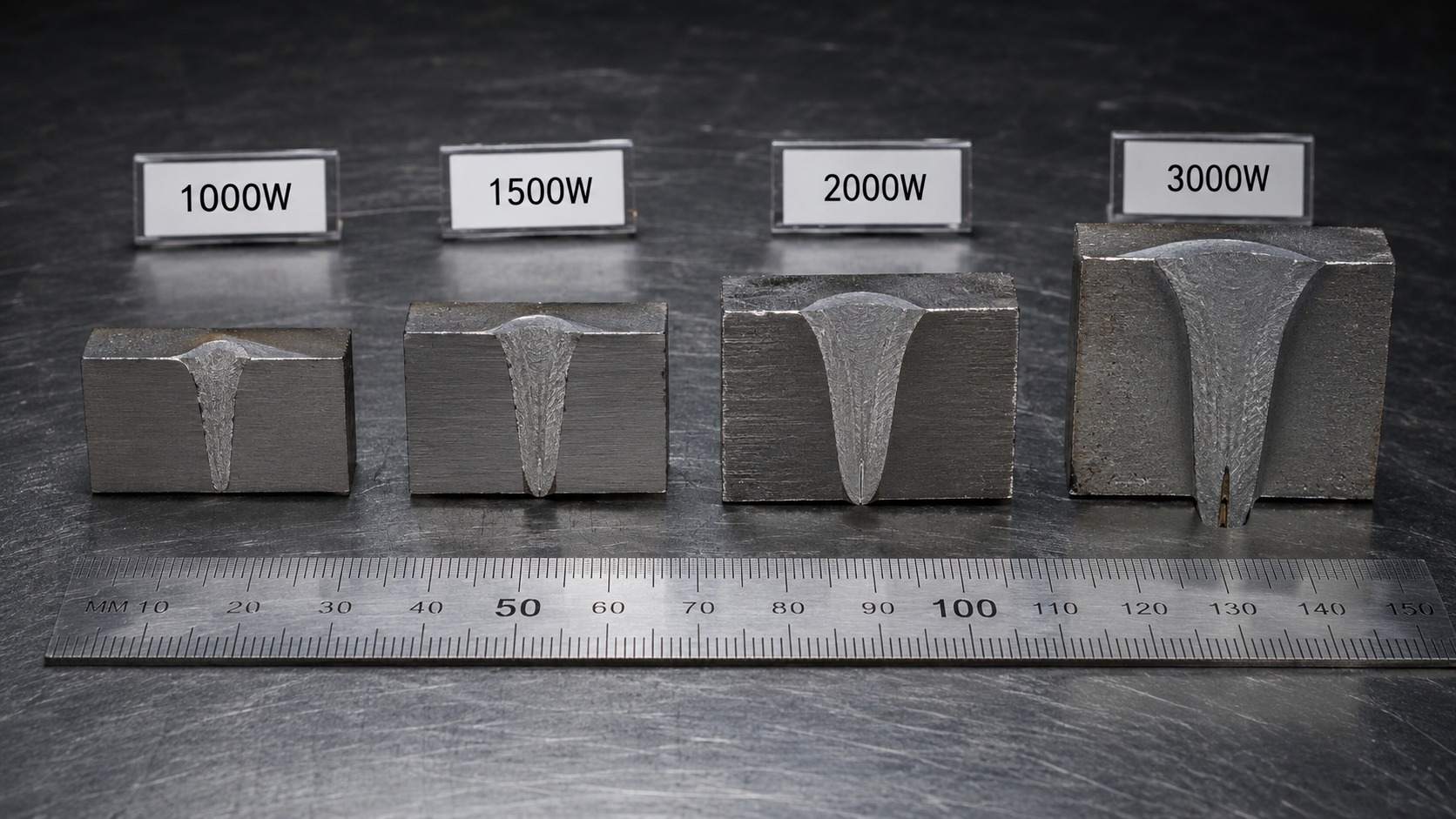

Power Determines Maximum Weldable Thickness

Higher laser power delivers more energy per unit time to the weld zone — enabling deeper penetration into thicker materials. This is the most direct and important relationship between power and capability.

Power Affects Welding Speed

At a given material thickness, higher power enables faster welding speeds — because more energy is available to melt the material quickly. This directly affects your production throughput.

Power Affects Heat Input and Distortion

More power means more heat input. For thin or heat-sensitive materials, excessive power can cause warping, burn-through, or discoloration. The DT-HJR's power adjustment range of 10%–100% allows precise control — but starting with the right base power level is still important for optimal results.

Power Is Not the Only Variable

Welding speed, focal position, wire feed rate, shielding gas, and joint fit-up all interact with laser power to determine the final weld result. However, power sets the fundamental capability envelope within which all other parameters operate.

DATO DT-HJR Power Levels: Complete Capability Data

The DATO DT-HJR robotic laser welding machine is available in four power configurations. Here is the complete welding capability data for each:

Full Welding Capability Comparison Table

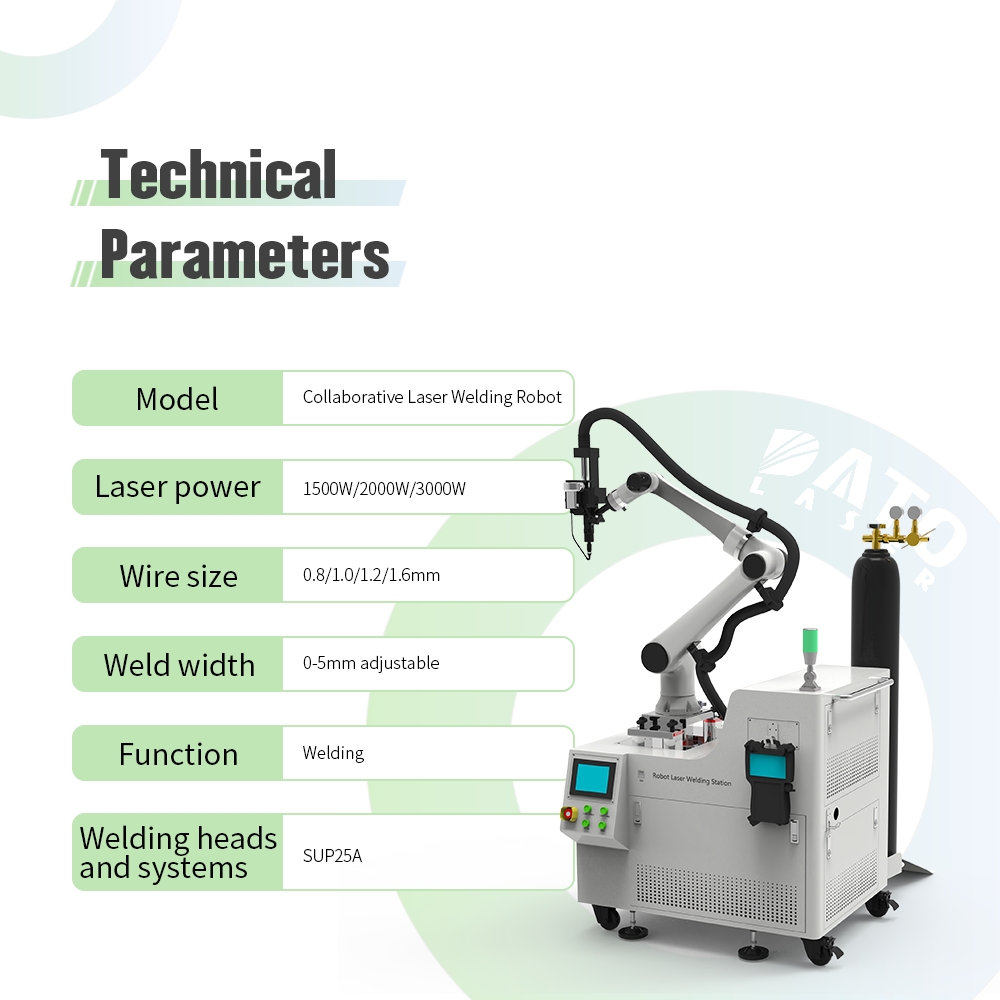

Common Specifications Across All Power Levels:

• Power Adjustment Range: 10%–100%

• Output Central Wavelength: 1070 ± 20nm

• Cooling Method: Water cooling

• Welding Width: 0–5mm

• Wire Diameter: 0.8 / 1.0 / 1.2 / 1.6mm

• Max Wire Feeding Speed: 100mm/s

• Welding Precision: ≤0.5mm

Deep Dive: Each Power Level Explained

1000W — Precision Light Fabrication

The 1000W configuration is the entry point of the DT-HJR range. It delivers full laser welding capability for thin materials and precision applications where heat input control is as important as penetration depth.

What it welds well:

• Carbon steel and stainless steel up to 3mm

• Aluminum alloy up to 1mm

• Thin-wall tube and pipe welding

• Precision seal welds and air nozzle welds

• Decorative metalwork and signage components

Where it excels:The 1000W configuration is ideal for manufacturers whose entire production range falls within the 1–3mm thickness band. It delivers the same 10× speed advantage over manual welding as higher power configurations, with lower energy consumption and lower upfront investment.

Where it falls short:If your production includes any materials thicker than 3mm carbon steel or stainless steel — or aluminum thicker than 1mm — the 1000W configuration will not deliver adequate penetration. Attempting to weld beyond its capability results in incomplete fusion, weak joints, and unacceptable weld quality.

Ideal for:Advertising and signage manufacturers, precision electronics enclosure fabricators, thin-wall stainless steel component producers, and any operation where the thickest material in the production range is 3mm or less.

1500W — The Most Popular All-Round Choice

The 1500W configuration is the most widely selected power level for general industrial welding applications — and for good reason. It covers the thickness range that represents the majority of sheet metal fabrication, kitchen equipment, bathroom fixtures, and general manufacturing work.

What it welds well:

• Carbon steel and stainless steel up to 4mm

• Aluminum alloy up to 2mm

• Galvanized steel sheet metal components

• Kitchen sink and cabinet fabrication

• Bathroom fixture and hardware welding

• General structural brackets and frames up to 4mm

Where it excels:The 1500W configuration hits the sweet spot between capability and cost for the majority of manufacturers. It handles the full range of standard sheet metal thicknesses (0.5mm–4mm) with excellent speed and quality, while keeping upfront investment and energy consumption at a moderate level.

Where it falls short:For manufacturers who regularly weld carbon steel or stainless steel thicker than 4mm, the 1500W configuration begins to approach its penetration limit. While it may produce acceptable welds on 4–5mm material at reduced speed, consistent quality at these thicknesses requires stepping up to 2000W.

Ideal for:Kitchen and bathroom equipment manufacturers, general sheet metal fabricators, HVAC component producers, advertising and display manufacturers working with materials up to 4mm, and first-time robotic laser welding buyers whose production falls primarily in the 1–4mm range.

DATO Insight: If you are unsure between 1500W and 2000W, consider your thickest regular production material. If it is 4mm or below, 1500W is the right choice. If you regularly weld 4–5mm material, 2000W provides a more comfortable performance margin and better long-term flexibility.

2000W — Mid-Weight Structural Capability

The 2000W configuration significantly expands the welding envelope — particularly for aluminum alloy, where the jump from 2mm (1500W) to 3mm (2000W) opens up a much wider range of structural aluminum applications.

What it welds well:

• Carbon steel and stainless steel up to 5mm

• Aluminum alloy up to 3mm — a significant capability jump

• Medium-weight structural frames and brackets

• Automotive body panels and structural components

• Industrial equipment housings and enclosures

• Thicker-wall pipe and tube welding

• Construction hardware and fittings

Where it excels:The 2000W configuration is the right choice for manufacturers who work across a mixed thickness range — some thin sheet metal work, but also regular production of 4–5mm components. It provides comfortable headroom above the 1500W capability limit without the cost of the 3000W configuration.

For aluminum welding specifically, the 2000W configuration is a significant step up. Aluminum is highly thermally conductive and requires more energy to achieve proper fusion — the jump from 1500W to 2000W makes a meaningful difference in aluminum weld quality and speed at thicknesses above 1.5mm.

Where it falls short:For manufacturers who regularly weld carbon steel or stainless steel thicker than 5mm, or aluminum thicker than 3mm, the 2000W configuration will not deliver adequate penetration at production speeds. The 3000W configuration is required for these applications.

Ideal for:Automotive component manufacturers, medium-weight structural fabricators, aluminum product manufacturers, industrial equipment producers, and any operation with a mixed thickness range that regularly includes 4–5mm carbon steel or 2–3mm aluminum.

3000W — Heavy Industrial Power

The 3000W configuration is the most powerful option in the DT-HJR range, delivering the capability to weld the thickest industrial materials at full production speed. It is the choice for manufacturers who cannot afford any compromise on penetration depth or welding speed.

What it welds well:

• Carbon steel and stainless steel up to 8mm — the widest capability in the DT-HJR range

• Aluminum alloy up to 6mm — enabling structural aluminum welding at scale

• Heavy structural frames, beams, and load-bearing components

• Rail and locomotive structural components

• Construction and building material components

• Heavy-duty industrial machinery frames

• Thick-wall pressure vessel and tank components

• Large-format sheet metal assemblies

Where it excels:The 3000W configuration removes the thickness constraint entirely for the vast majority of industrial welding applications. At 8mm carbon steel and 6mm aluminum, it covers virtually every standard industrial fabrication requirement. It also delivers the highest welding speed at any given thickness — maximizing throughput on heavy components where cycle time matters most.

For manufacturers in rail, construction, heavy equipment, and similar industries, the 3000W configuration is not a luxury — it is a necessity. Attempting to weld 6–8mm structural components with a lower-power system results in inadequate penetration, poor joint strength, and unacceptable quality.

Where it falls short:The 3000W configuration requires higher energy consumption and a higher upfront investment than lower-power options. For manufacturers whose production is entirely within the 1–4mm range, this additional cost delivers no practical benefit.

Ideal for:Rail and locomotive manufacturers, construction component fabricators, heavy equipment manufacturers, shipbuilding component producers, pressure vessel fabricators, and any operation that regularly welds carbon steel or stainless steel above 5mm, or aluminum above 3mm.

The Power Selection Decision Framework

Use this step-by-step framework to identify the right power level for your specific production requirements:

Step 1: Identify Your Full Material Range

List every material type and thickness combination you currently weld — or plan to weld within the next 2–3 years. Include your thinnest and thickest regular production materials.

Step 2: Identify Your Thickest Critical Material

Your power level must be capable of welding your thickest regular production material at acceptable quality and speed. This is your minimum power requirement.

Thickest carbon steel / stainless steel ≤ 3mm → 1000W minimum

Thickest carbon steel / stainless steel ≤ 4mm → 1500W minimum

Thickest carbon steel / stainless steel ≤ 5mm → 2000W minimum

Thickest carbon steel / stainless steel ≤ 8mm → 3000W minimum

Thickest aluminum ≤ 1mm → 1000W minimum

Thickest aluminum ≤ 2mm → 1500W minimum

Thickest aluminum ≤ 3mm → 2000W minimum

Thickest aluminum ≤ 6mm → 3000W minimum

Step 3: Consider Your Production Volume and Speed Requirements

Higher power enables faster welding at any given thickness. If your production volume is high and cycle time is critical, consider stepping up one power level above your minimum requirement to gain speed headroom.

Step 4: Consider Your Future Production Plans

If you anticipate taking on thicker material work within the next 2–3 years, factor that into your power selection now. Upgrading power later is costly and disruptive. A modest upfront investment in the next power level up can protect your flexibility for years.

Step 5: Validate with a Free Sample Weld Test

Before finalizing your decision, request a free sample weld test from DATO's engineering team. Provide your actual materials and thickness specifications, and we will produce sample welds that allow you to verify quality and penetration with your own eyes — before committing to a purchase.

Power Selection by Industry: Quick Reference

Common Power Selection Mistakes — and How to Avoid Them

Mistake 1: Choosing Power Based on Price Alone

The cheapest power level is only the right choice if it genuinely covers your full production range. If it does not, the "savings" on the machine purchase will be more than offset by the work you cannot take on, the quality problems you encounter, or the cost of replacing the machine sooner than planned.

Mistake 2: Ignoring Aluminum's Higher Power Requirement

Aluminum has high thermal conductivity — it dissipates heat rapidly, requiring more laser energy to achieve proper fusion compared to carbon steel or stainless steel of the same thickness. Many buyers underestimate this and select a power level adequate for their steel work, only to find it insufficient for their aluminum components. Always check the aluminum capability of your chosen power level specifically.

Mistake 3: Not Accounting for Future Production Growth

If you are growing your business and expect to take on thicker material work within the next few years, factor that into your power selection now. The incremental cost of stepping up one power level at purchase time is almost always less than the cost of replacing or supplementing your equipment later.

Mistake 4: Assuming Higher Power Always Means Better Quality

For thin materials, excessive power can cause burn-through, excessive spatter, and heat distortion. The DT-HJR's 10%–100% power adjustment range provides significant flexibility — but starting with a power level that is genuinely matched to your material range produces the best results with the least parameter adjustment required.

Mistake 5: Making the Decision Without a Sample Weld Test

No specification sheet can fully substitute for seeing actual weld quality on your specific materials. DATO offers free weld sample testing — use it. It is the single most reliable way to validate your power selection before committing to a purchase.

How DATO Supports Your Power Selection Decision

At DATO, we understand that power selection is one of the most important — and most anxiety-inducing — decisions in the purchasing process. Our approach is straightforward: we help you make the right decision for your application, not the most profitable decision for us.

Here is what DATO's power selection support looks like in practice:

Free Pre-Sales Engineering ConsultationShare your complete material list — types, thicknesses, and production volumes — with DATO's engineering team. We will analyze your requirements and give you a clear, honest power recommendation with a full explanation of the reasoning.

Free Weld Sample TestingBefore you purchase, DATO will produce free weld samples on your actual materials at the recommended power level. You verify penetration, seam quality, and appearance with your own eyes — eliminating any uncertainty about whether the power level is right for your application.

Transparent Power Comparison PricingWe provide clear pricing for each power configuration so you can make a fully informed decision about the cost-benefit trade-off of stepping up or down in power.

Customization SupportEvery DT-HJR can be configured to your specific requirements — power level, laser source brand, wire diameter, and control system parameters. Our technical team ensures your system is optimized for your production from day one.

Explore the full DATO laser welding machine range — including handheld and 3-in-1 options — to find the complete solution that fits your production workflow.

Frequently Asked Questions (FAQ)

Q1: What is the most popular power level for robotic laser welding machines?

For general industrial applications, 1500W is the most widely selected power level — it covers the full range of standard sheet metal thicknesses (up to 4mm carbon steel and stainless steel) at excellent speed and quality, while keeping investment and energy costs at a moderate level. For heavier fabrication applications, 3000W is the standard choice.

Q2: Can a 1500W laser welder handle stainless steel kitchen equipment?

Yes. The 1500W configuration is specifically well-suited for stainless steel kitchen and bathroom equipment fabrication. It handles stainless steel up to 4mm with excellent seam quality, minimal spatter, and no post-weld grinding required in most applications — making it the most popular choice for this industry.

Q3: Is 3000W necessary for aluminum welding?

It depends on your aluminum thickness. For aluminum up to 2mm, 1500W is adequate. For 2–3mm aluminum, 2000W is recommended. For structural aluminum components 3–6mm thick, 3000W is required. Aluminum's high thermal conductivity means it needs more power than carbon steel of the same thickness — always check the aluminum-specific capability of your chosen power level.

Q4: Will a higher power laser welder damage thin materials?

Not if used correctly. The DT-HJR's 10%–100% power adjustment range allows you to reduce power output for thin materials even on a high-power machine. However, for production operations focused primarily on thin materials (under 2mm), a lower base power level is generally more efficient and easier to control. DATO's engineering team will advise on the optimal power setting for each material in your range.

Q5: Can I weld different material thicknesses on the same machine?

Yes. The DT-HJR's smart control system supports different welding parameter programs for different materials and thicknesses. You can store multiple programs and switch between them as your production requirements change — making the system highly flexible for mixed-production environments.

Q6: What happens if I choose a power level that is too low for my materials?

Insufficient power results in incomplete fusion — the laser does not deliver enough energy to fully penetrate and melt the base material. This produces weak, porous welds with poor mechanical properties that will fail quality inspection. It is not a parameter adjustment issue — it is a fundamental capability limitation that cannot be overcome without increasing power.

Q7: How do I know if my materials are within the capability of a specific power level?

The most reliable way is to request a free weld sample test from DATO. Provide your material specifications — type, thickness, and joint configuration — and our team will produce sample welds that demonstrate exactly what the machine can achieve on your specific materials. Contact us here to arrange your free test.

Q8: Does DATO offer customized power configurations beyond the standard 1000W–3000W range?

The DT-HJR is available in the four standard power configurations: 1000W, 1500W, 2000W, and 3000W. These cover the full range of standard industrial welding applications. For specialized requirements outside this range, contact DATO's engineering team to discuss your specific needs — we have a strong technical team with extensive customization experience.

Summary: The Right Power Level for Your Application

Choosing the right laser welding power is not about buying the most powerful option available — it is about matching your investment precisely to your production requirements.

When in doubt, always validate your choice with a free weld sample test — and let DATO's engineering team help you make the decision with confidence.

The DATO DT-HJR Automatic Laser Welding Machine is available in all four power configurations, with your choice of Raycus, MAX, or IPG laser source — giving you a fully customized solution that is precisely matched to your production requirements, backed by 18+ years of laser manufacturing expertise and a global service network.
