The decision to automate your welding operation is the right one. But for many manufacturers, the bigger question is not whether to invest — it's how to make the transition smoothly, without disrupting current production, overwhelming your team, or discovering expensive surprises after the machine arrives.

This guide walks you through the complete integration process for a robotic laser welding machine — from the initial assessment of your production environment, through installation, programming, and operator training, to long-term operation and support. Every step is based on the real-world deployment experience of DATO, a laser equipment manufacturer with 18+ years of global industrial installations behind it.

Whether you are integrating your first robotic welding system or expanding an existing automated line, this guide will help you plan confidently and execute successfully.

Why Integration Planning Is as Important as the Machine Itself

Many manufacturers focus almost entirely on the machine specification during the purchasing process — power level, laser source, welding speed — and give relatively little thought to the integration process. This is understandable, but it leads to avoidable problems:

• Inadequate floor space or utilities discovered after delivery, causing installation delays

• Operators who are unprepared to run the system, leading to slow ramp-up and early quality issues

• Part fixtures that don't exist yet, preventing the system from being used immediately

• Production scheduling conflicts because the transition from manual to robotic welding wasn't planned

• Unrealistic expectations about how quickly the system will reach full productivity

None of these problems are difficult to solve — but they are much easier to solve before the machine arrives than after. A well-planned integration turns what could be a stressful disruption into a smooth, fast transition that starts delivering ROI from day one.

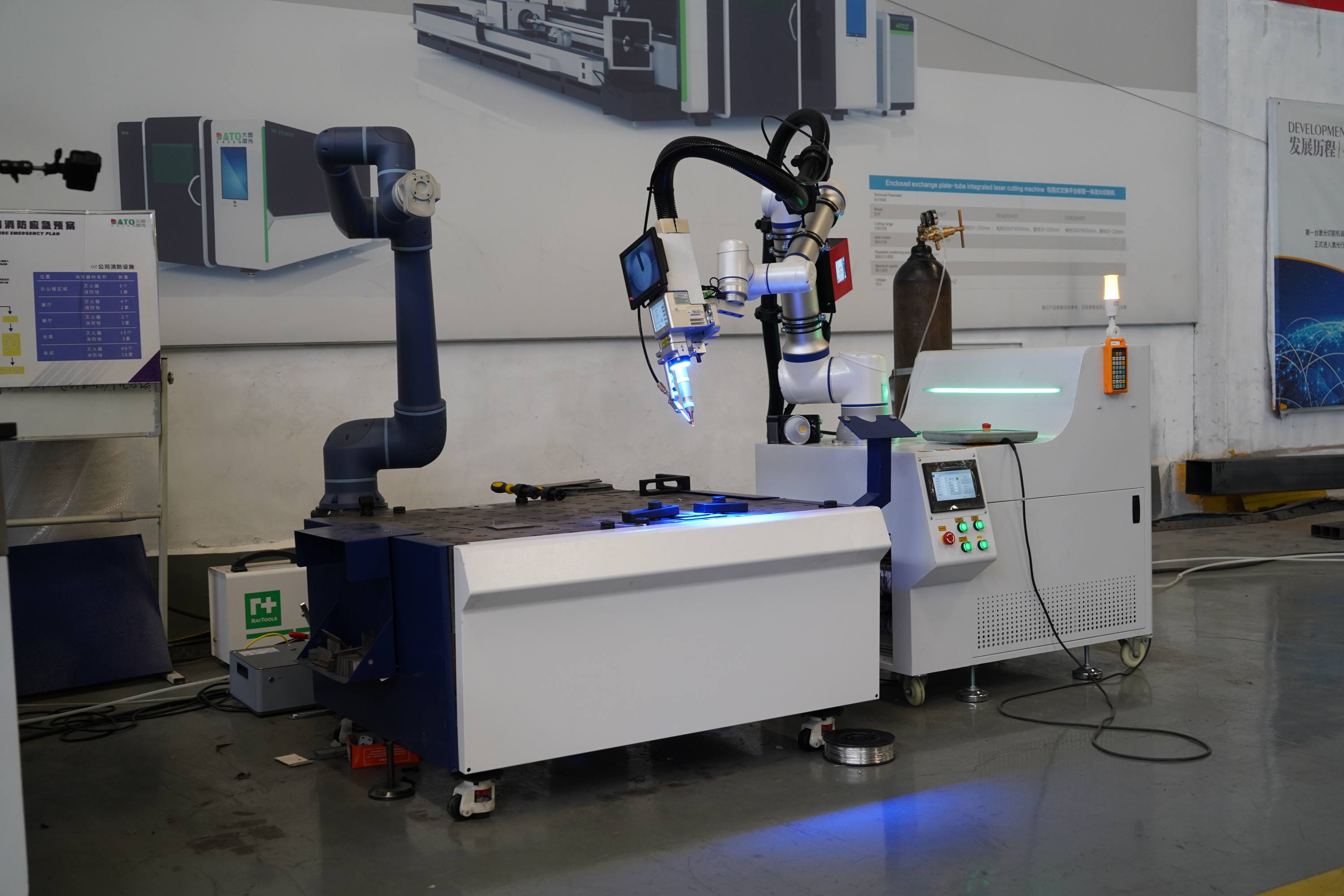

The DATO DT-HJR Automatic Laser Welding Machine is designed with integration in mind: its 6-axis collaborative robot arm, intelligent control system, and modular architecture make it one of the most deployment-friendly robotic welding systems available. But the machine's ease of integration is maximized when the preparation work is done properly.

Here is exactly how to do that.

Phase 1: Pre-Purchase Assessment — Getting the Foundation Right

Successful integration begins before you place your order. The pre-purchase assessment phase is where you gather the information needed to configure the right system and plan the right deployment.

Step 1.1 — Define Your Welding Requirements Precisely

Before anything else, document your production welding requirements in detail:

Material Specification:

• What metals do you weld? (Carbon steel, stainless steel, galvanized alloy, aluminum alloy, or combinations)

• What are the minimum and maximum material thicknesses in your production range?

• Are there any special material grades or coatings that require specific welding parameters?

Part Geometry:

• What are the dimensions and shapes of the parts you weld?

• What joint types are involved? (Butt joints, fillet welds, lap joints, T-joints, pipe welds)

• Are there complex 3D weld paths, or primarily 2D flat welds?

• What is the required weld seam width and penetration depth?

Production Volume:

• How many units per shift, per day, per month do you need to weld?

• Is production continuous (same part repeated) or mixed (multiple different parts)?

• What is your current production bottleneck — speed, quality, or labor availability?

Quality Requirements:

• What weld quality standards apply to your products? (Visual, structural, pressure-tight, certified)

• Is post-weld grinding currently required? Is eliminating it a goal?

• Do your customers or quality systems specify any particular welding process requirements?

This documentation serves two purposes: it enables DATO's engineering team to recommend the optimal machine configuration, and it becomes the specification baseline for programming and quality validation after installation.

Step 1.2 — Assess Your Production Environment

The physical environment where the DT-HJR will be installed needs to meet certain requirements. Assess the following before finalizing your order:

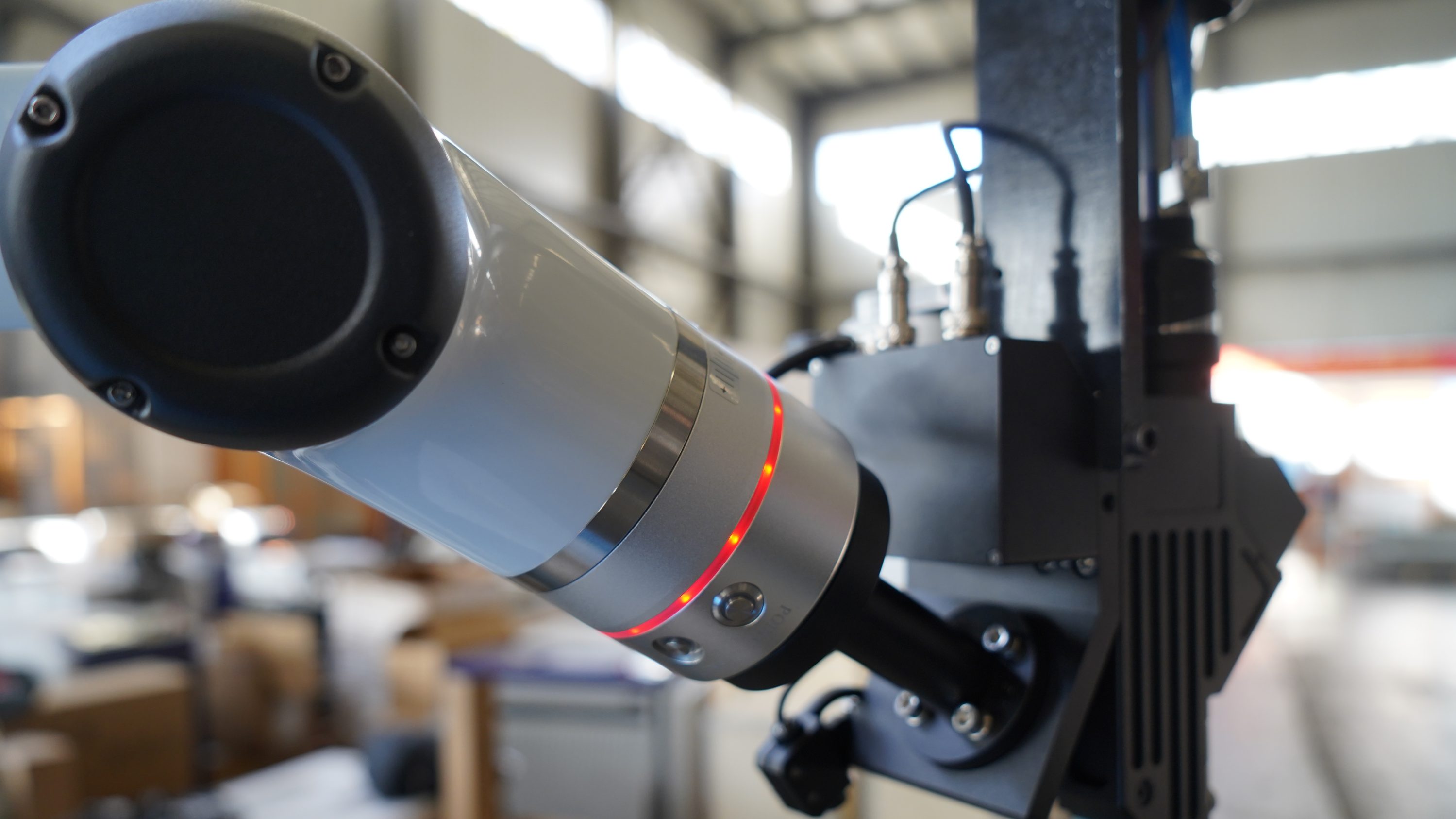

Floor Space:The DT-HJR's 6-axis collaborative robot arm requires adequate clearance for its full range of motion, plus space for part loading/unloading, fixture positioning, and operator access. Confirm that your planned installation location provides sufficient floor area — DATO's engineering team will provide specific space requirements based on your configuration.

Power Supply:Confirm that your facility has the appropriate electrical supply for the laser power level you are ordering. Higher power configurations (2000W, 3000W) require correspondingly higher electrical capacity. If upgrades are needed, plan and budget for them before the machine arrives.

Ventilation and Fume Extraction:Laser welding generates metal fumes and particulates. Adequate ventilation is essential for operator safety and compliance with workplace health regulations. The DT-HJR can be configured with an optional smoke purifier — assess whether your facility requires this upgrade based on your ventilation infrastructure and local regulations.

Cooling Water Supply:The DT-HJR uses water cooling for the laser source. Confirm that a suitable cooling water supply and drainage system is available at the installation location, or plan for a standalone water chiller unit.

Floor Load Capacity:Confirm that your floor can support the weight of the DT-HJR system. DATO will provide the machine weight specifications for your configuration.

Lighting and Safety Barriers:Laser welding requires appropriate safety measures, including laser safety barriers or enclosures and appropriate warning signage. Plan for these requirements as part of your installation preparation.

Step 1.3 — Evaluate Your Part Fixturing Requirements

This is one of the most commonly overlooked aspects of robotic welding integration — and one of the most important. Unlike manual welding, where an experienced welder can compensate for part variation and positioning inconsistency, a robotic laser welding system requires parts to be presented to the welding head in a consistent, repeatable position on every cycle.

This means you need fixtures — dedicated holding devices that locate each part accurately and hold it securely during the welding cycle.

Ask yourself:

• Do you already have fixtures for the parts you plan to weld robotically?

• If not, who will design and manufacture them — your team, a local toolmaker, or DATO?

• How many different part types will you weld on the DT-HJR, and how many fixture sets does that require?

• What is the lead time and cost for fixture fabrication?

Fixture design and fabrication is often on the critical path for robotic welding deployment. Starting this work early — ideally in parallel with machine procurement — prevents delays between machine delivery and productive operation.

Step 1.4 — Engage DATO's Pre-Sales Engineering Team

With your requirements documented and your environment assessed, engage DATO's engineering team for a detailed pre-sales consultation. This consultation is free of charge and covers:

• Confirmation of the right power level and laser source configuration for your application

• Review of your part geometry and joint types to confirm DT-HJR suitability

• Guidance on fixturing requirements and approach

• Site preparation checklist specific to your configuration

• Free weld sample production on your actual materials — so you can validate quality before ordering

DATO's Commitment: Our goal in the pre-sales phase is to make sure the DT-HJR is genuinely the right solution for your application — and that you have everything you need to deploy it successfully. We would rather have an honest conversation about fit than deliver a machine that underperforms because the integration wasn't planned properly.

Phase 2: Order, Configuration & Delivery

Step 2.1 — Configure Your System

Based on the pre-sales consultation, finalize your DT-HJR configuration:

Every DT-HJR can be customized to your specific production requirements. DATO's technical team has extensive experience with application-specific configurations — if your production has unique requirements, discuss them during the pre-sales consultation.

Step 2.2 — Factory Acceptance Testing (FAT)

Before your DT-HJR leaves DATO's factory, it undergoes Factory Acceptance Testing — a comprehensive validation process that confirms the machine performs to specification before shipment. This includes:

• Full functional testing of the robot arm, laser source, and control system

• Weld quality validation on representative test materials

• Documentation of all test results

If you wish to witness the FAT in person or via video call, DATO can accommodate this. It is an excellent opportunity to see your machine operating before it ships, and to ask any final technical questions before installation.

Step 2.3 — Shipping and Logistics

DATO ships globally by sea or air, with flexible trading terms: FOB, CIF, and EXW are all available. Your DATO sales contact will coordinate shipping logistics and provide all necessary documentation for customs clearance.

Typical shipping timeline considerations:

• Sea freight to most destinations: 15–45 days depending on destination port

• Air freight: 3–7 days for urgent requirements

• Allow additional time for customs clearance in your country

Use the shipping lead time productively: complete your site preparation, finalize your fixtures, and ensure your operators are briefed on what to expect during installation.

Phase 3: Installation and Site Setup

Step 3.1 — Site Preparation Checklist

Before the machine arrives, complete the following site preparation tasks:

Electrical:

• ✅ Confirm power supply capacity matches machine requirements

• ✅ Install dedicated circuit breaker and power connection point

• ✅ Confirm earthing/grounding is in place

Mechanical:

• ✅ Clear and prepare the installation floor area

• ✅ Confirm floor load capacity is adequate

• ✅ Install any required anchor points or anti-vibration mounts

Cooling:

• ✅ Confirm cooling water supply and drainage, or install standalone water chiller

• ✅ Confirm water quality meets laser source requirements (typically deionized or filtered water)

Ventilation:

• ✅ Confirm ventilation capacity is adequate, or install smoke purifier

• ✅ Ensure fume extraction ducting is in place if required

Safety:

• ✅ Install laser safety barriers or enclosures as required

• ✅ Post appropriate laser safety warning signage

• ✅ Brief all relevant personnel on laser safety protocols

Fixtures and Tooling:

• ✅ Confirm fixtures for initial production parts are complete and available

• ✅ Confirm wire spool stock is available in the correct diameter(s)

Step 3.2 — Machine Installation

The DT-HJR installation process involves:

1. Unpacking and inspection — Confirm the machine arrived undamaged and all components are present

2. Positioning and leveling — Place the machine in its designated location and confirm it is level

3. Utility connections — Connect electrical supply, cooling water, and fume extraction

4. System power-up and self-check — Initial power-up and system diagnostic confirmation

5. Robot arm calibration — Confirm robot arm calibration and range of motion

6. Laser source commissioning — Confirm laser source output and beam alignment

DATO provides comprehensive English installation documentation and video guides with every machine. For customers who require on-site installation support, DATO's technical team can provide remote guidance via video call throughout the installation process.

Phase 4: Programming and Process Setup

This is the phase that transforms a successfully installed machine into a productive welding system. Programming the DT-HJR for your specific parts is where the real work of integration happens — and where DATO's support is most valuable.

Step 4.1 — Understanding the DT-HJR Control System

The DT-HJR features a high-end intelligent control system that is designed to be stable, reliable, and accessible to operators without advanced robotics backgrounds. Key capabilities include:

• Weld path programming — Define the robot arm's movement path for each part geometry

• Welding parameter setting — Set laser power, welding speed, wire feed rate, and other process parameters for each material and joint type

• Program storage and recall — Store multiple programs for different parts and switch between them quickly

• Modular configuration support — The system supports modular, personalized, automated, and informatized production configurations

The control system's 10%–100% power adjustment range gives operators precise control over heat input — enabling fine-tuning of weld quality across different materials and thicknesses without changing the base power configuration.

Step 4.2 — Programming Your First Parts

For your initial production parts, the programming process typically follows these steps:

① Part Setup and FixturingMount the first part in its fixture and confirm it is positioned correctly and securely. Consistent fixture positioning is the foundation of consistent weld quality — verify this carefully before programming begins.

② Teach Point DefinitionUse the DT-HJR's programming interface to define the key points along the weld path — start point, end point, and any intermediate path points required for complex geometries. The 6-axis robot arm's full range of motion enables programming of complex 3D weld paths, including inner fillet, outer fillet, splicing, spot, and fish-scale welding configurations.

③ Welding Parameter SettingSet the welding parameters for this material and joint type:

• Laser power (% of rated power)

• Welding speed (mm/s)

• Wire feed rate (mm/s)

• Welding mode (continuous, modulation, spot, etc.)

④ Test Run and ValidationRun the program on a test part and evaluate the weld quality: penetration, seam appearance, spatter level, and dimensional accuracy. Adjust parameters as needed until the weld meets your quality requirements.

⑤ Program Save and DocumentationSave the validated program with a clear part identifier. Document the welding parameters for quality records and future reference.

Repeat this process for each part type in your initial production range. As your team gains experience with the system, programming new parts becomes faster and more intuitive.

DATO Support: DATO's engineering team provides remote programming support via video call for customers who need guidance during the initial programming phase. Our team has experience with a wide range of part geometries and materials — if you encounter a challenging programming situation, we are available to help.

Step 4.3 — Process Validation and Quality Sign-Off

Before moving to full production, validate the welding process for each programmed part against your quality requirements:

• Visual inspection — Confirm seam appearance, consistency, and freedom from defects

• Dimensional check — Confirm weld dimensions meet specification

• Destructive testing (if required) — Cross-section samples to verify fusion and penetration

• Functional testing (if applicable) — Pressure testing for sealed components, load testing for structural parts

Document the validation results for each part program. This documentation forms the foundation of your quality management records for robotic welding production.

Phase 5: Operator Training and Team Readiness

Step 5.1 — Who Needs Training, and What Do They Need to Know?

Successful DT-HJR operation requires three distinct competency levels across your team:

Machine OperatorsOperators who load parts, initiate weld cycles, monitor production, and unload finished components. They need to understand:

• Safe machine operation and laser safety protocols

• How to load and position parts in fixtures correctly

• How to start, pause, and stop production cycles

• How to recognize and report weld quality issues

• Basic troubleshooting for common operational issues

Program TechniciansTeam members responsible for programming new parts and adjusting welding parameters. They need to understand:

• The DT-HJR control system interface and programming workflow

• How to define weld paths and set welding parameters

• How to validate weld quality and adjust parameters to achieve target results

• How to save, manage, and document welding programs

Maintenance PersonnelTeam members responsible for routine maintenance and first-line troubleshooting. They need to understand:

• The DT-HJR maintenance schedule and procedures

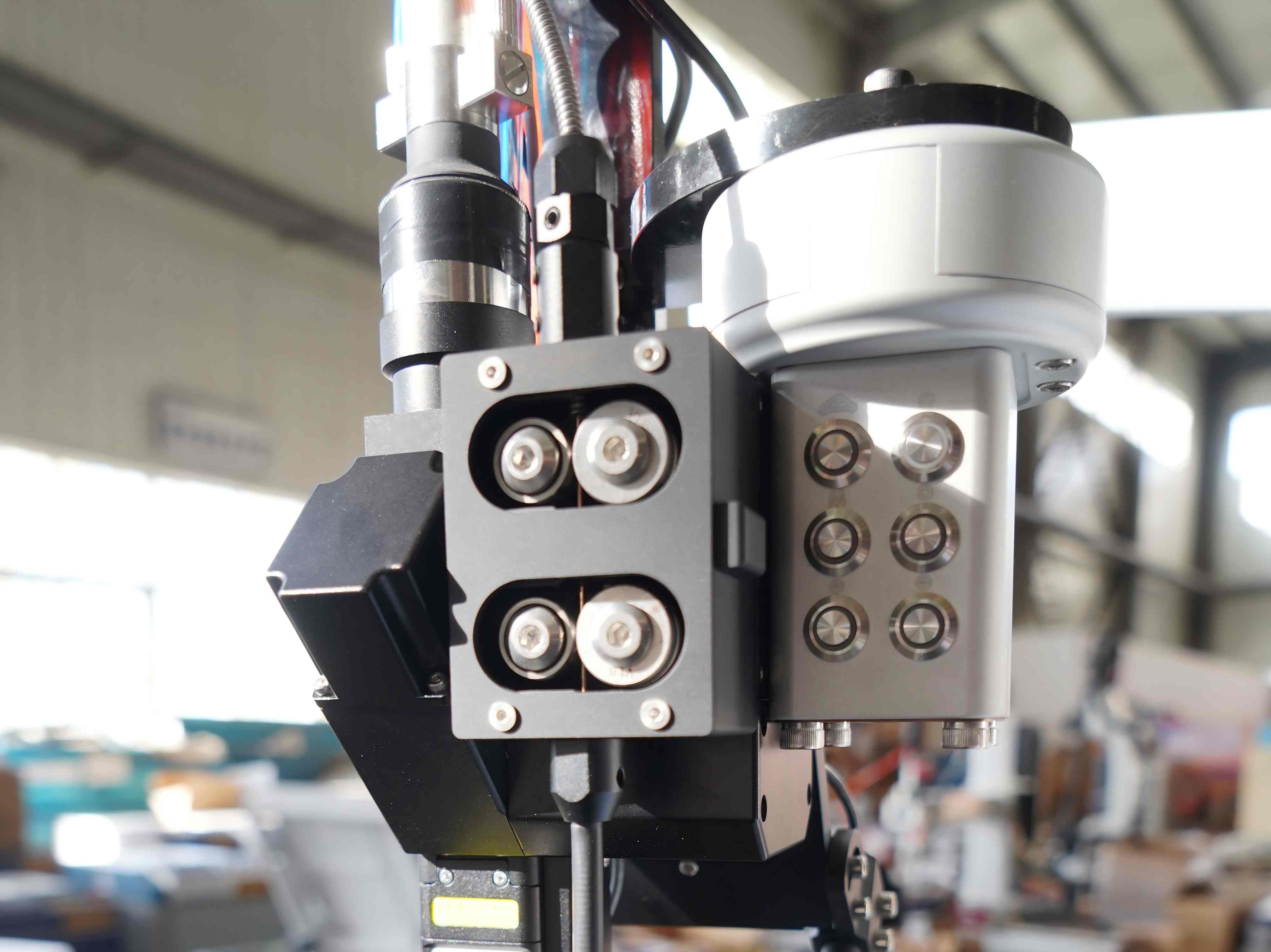

• How the automatic gun cleaning and wire cutting system operates

• How to inspect and replace consumable components

• How to identify and escalate technical issues that require DATO support

Step 5.2 — DATO's Training Support

DATO provides comprehensive training support with every DT-HJR system:

• English operation manuals — Complete documentation covering all aspects of machine operation, programming, and maintenance

• Video training guides — Step-by-step video content covering key operational procedures

• Remote training support — DATO's technical team is available via video call to guide your team through the training process

• Ongoing technical support — DATO's 24/7 after-sales support team is available whenever your operators need guidance, even after the initial training period

Most operators achieve confident, productive operation within a short training period. The DT-HJR's intelligent control system is designed for ease of use — it does not require advanced robotics expertise to operate effectively.

Phase 6: Ramp-Up, Optimization, and Long-Term Operation

Step 6.1 — Production Ramp-Up Strategy

Rather than switching your entire welding operation to the DT-HJR on day one, a phased ramp-up approach typically delivers the best results:

Week 1–2: Initial Production RunsRun the DT-HJR on your best-programmed, most straightforward parts. Focus on building operator confidence and validating production quality. Keep manual welding available as a backup during this phase.

Week 3–4: Expanding the Part RangeProgram additional part types and begin running a broader range of production on the DT-HJR. Continue monitoring quality closely and refining parameters as needed.

Month 2 onwards: Full Production IntegrationTransition primary production to the DT-HJR for all programmed part types. Reassign manual welding resources to complex custom work, new part programming, or other production tasks.

This phased approach allows your team to build competence and confidence progressively — without the pressure of immediately depending on the robotic system for 100% of your welding output.

Step 6.2 — Ongoing Maintenance for Maximum Uptime

The DT-HJR is designed for low-maintenance operation. Its built-in automatic gun cleaning and wire cutting system virtually eliminates torch clogging — the most common cause of unplanned downtime in robotic welding operations. Key routine maintenance tasks include:

DATO provides detailed maintenance schedules and procedures in the operation manual. Following these schedules consistently is the single most effective way to maximize your DT-HJR's operational life and minimize unplanned downtime.

Step 6.3 — DATO's 24/7 After-Sales Support

Even with excellent maintenance practices, technical questions and issues arise in any production environment. DATO's global after-sales support team is available 24 hours a day, 7 days a week to provide:

• Remote diagnostic support via video call

• Welding parameter guidance for new materials or part types

• Troubleshooting assistance for any operational issues

• Spare parts identification and supply

• Guidance on maintenance procedures

"Dato's after-sales service truly stands out. Quick to respond and always helpful, they've ensured that our machine runs smoothly, which has significantly reduced downtime and increased our operational efficiency."— Richard, DATO Customer

This 24/7 support commitment is not a marketing claim — it is a core part of how DATO has built and maintained its global customer relationships since 2007.

Integration Timeline: What to Expect

Here is a realistic timeline for a typical DT-HJR integration from order to full production:

Total time from order to full production: typically 8–16 weeks, depending on shipping distance, site preparation complexity, and the number of part types to be programmed.

Planning against this timeline — particularly starting site preparation and fixture fabrication in parallel with machine manufacturing — is the most effective way to minimize the gap between machine delivery and productive operation.

Frequently Asked Questions (FAQ)

Q1: Do I need a dedicated robotics engineer to integrate and operate the DT-HJR?

No. The DT-HJR's intelligent control system is designed for ease of use in standard manufacturing environments. DATO provides comprehensive operation manuals, video guides, and remote training support. Most operators achieve confident, productive operation within a short training period — no prior robotics engineering experience is required.

Q2: How long does it take to program a new part on the DT-HJR?

Programming time depends on part complexity. For straightforward geometries with simple weld paths, an experienced technician can typically complete programming and validation within a few hours. Complex 3D geometries with multiple weld paths take longer. As your team gains experience with the system, programming speed improves significantly.

Q3: What if my parts change frequently? Is the DT-HJR flexible enough for mixed production?

Yes. The DT-HJR's program storage and recall capability allows you to store programs for multiple part types and switch between them quickly. For production environments with frequent part changeovers, the key investment is in fixture design — each part type requires its own fixture for consistent positioning. DATO's team can advise on fixture strategies for mixed-production environments.

Q4: Can the DT-HJR be integrated with our existing production line automation?

The DT-HJR's smart control system supports modular, automated, and informatized production configurations — making it compatible with broader production line automation integration. The specific integration approach depends on your existing automation architecture. Contact DATO's engineering team to discuss your specific integration requirements.

Q5: What site preparation is most commonly overlooked by first-time buyers?

The two most commonly overlooked items are part fixturing and cooling water supply. Fixtures are often not started early enough, creating a delay between machine delivery and productive operation. Cooling water supply — including water quality requirements for the laser source — is frequently not assessed until installation day. Both are easy to address with advance planning.

Q6: What does DATO's after-sales support cover, and for how long?

DATO provides 24/7 technical support covering remote diagnostics, welding parameter guidance, troubleshooting, maintenance procedures, and spare parts supply. Support is available throughout the operational life of your machine — not just during a limited warranty period. DATO's commitment to long-term customer relationships is a core part of how we operate.

Q7: Can DATO provide on-site installation and training support?

DATO provides comprehensive remote installation and training support via video call, which is sufficient for the vast majority of customers. For customers who require on-site support, contact DATO's team to discuss the options available for your location.

Q8: How do I get started with the integration planning process?

The best first step is to contact DATO's engineering team for a free pre-sales consultation. Share your welding requirements, production environment details, and any specific integration questions — and our team will give you a clear, practical integration plan tailored to your situation. Contact us here to get started.

Your Integration Success Starts with the Right Partner

Integrating a robotic laser welding machine into your production line is a significant step — but it does not have to be a complicated or stressful one. With the right preparation, the right equipment, and the right support partner, most manufacturers are running productive robotic welding operations within weeks of machine delivery.

The DATO DT-HJR Automatic Laser Welding Machine is designed to make integration as straightforward as possible: its 6-axis collaborative robot arm handles complex geometries with ease, its intelligent control system is accessible to standard manufacturing operators, and its modular architecture supports both standalone deployment and broader production line integration.

And behind every DT-HJR is DATO's full support infrastructure — 500+ staff, 120+ R&D engineers, 18+ years of global deployment experience, and a 24/7 after-sales team committed to keeping your production running at peak performance.

Explore the complete DATO laser welding machine range — including handheld and 3-in-1 options for applications that complement your robotic welding operation — and take the first step toward a faster, more consistent, and more profitable welding operation today.

Ready to start planning your robotic welding integration?

Request a Free Integration Consultation with DATO's Engineering Team

Get a Free Weld Sample Test on Your Materials

Get a Personalized Quote for the DT-HJR Robotic Laser Welder

Explore All DATO Laser Welding Solutions

Shandong Dato Machinery Co., Ltd. — Laser Industry Leader Since 2007 info@datolaser.com | WhatsApp: +86-193-5317-3156 | www.datolaser.com
